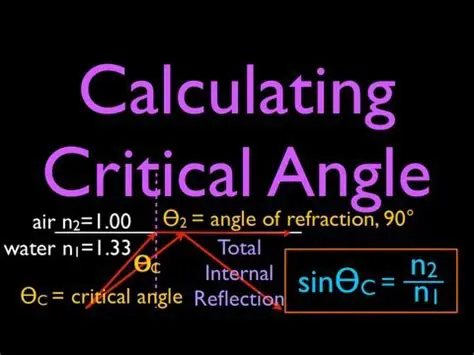

Calculating the Critical Angle

Oct 13, 2025 by recoveryshake.com 29 views

Introduction

In the realm of physics, particularly in the field of optics, the critical angle plays a crucial role in understanding the behavior of light as it passes from one medium to another. The critical angle is the angle of incidence above which total internal reflection occurs, and it is a fundamental concept in the study of refraction and reflection. In this article, we will delve into the calculation of the critical angle between glass and ice, two common materials with different refractive indices.

What is the Critical Angle?

The critical angle is the angle of incidence at which the angle of refraction is 90 degrees. At this angle, the light is completely reflected back into the first medium, and no light is transmitted into the second medium. The critical angle is a function of the refractive indices of the two media and can be calculated using Snell's law.

Snell's Law

Snell's law is a fundamental principle in optics that describes the behavior of light as it passes from one medium to another. It states that the ratio of the sines of the angles of incidence and refraction is equal to the ratio of the velocities of the two media, or equivalently, the ratio of their refractive indices. Mathematically, Snell's law can be expressed as:

n1 sin(θ1) = n2 sin(θ2)

where n1 and n2 are the refractive indices of the two media, and θ1 and θ2 are the angles of incidence and refraction, respectively.

Calculating the Critical Angle

To calculate the critical angle, we need to rearrange Snell's law to solve for the angle of incidence (θ1). We can do this by setting the angle of refraction (θ2) to 90 degrees, since at the critical angle, the light is completely reflected back into the first medium. The refractive index of glass (n1) is 1.90, and the refractive index of ice (n2) is 1.31.

n1 sin(θ1) = n2 sin(90°)

Since sin(90°) = 1, we can simplify the equation to:

n1 sin(θ1) = n2

Now, we can solve for the angle of incidence (θ1) by dividing both sides of the equation by n1:

sin(θ1) = n2 / n1

sin(θ1) = 1.31 / 1.90

sin(θ1) = 0.6915

θ1 = arcsin(0.6915)

θ1 ≈ 43.02°

Conclusion

In conclusion, the critical angle between glass and ice can be calculated using Snell's law. By rearranging the equation to solve for the angle of incidence, we can find the critical angle by dividing the refractive index of ice by the refractive index of glass. The calculated critical angle is approximately 43.02°, which is the correct answer.

Answer

The correct answer is A. 43°.

Discussion

The critical angle is an important concept in physics, particularly in the field of optics. It plays a crucial role in understanding the behavior of light as it passes from one medium to another. The calculation of the critical angle between glass and ice is a simple yet important example of how Snell's law can be used to predict the behavior of light in different materials.

References

Hecht, E. (2017). Optics (5th ed.). Pearson Education.
Serway, R. A., & Jewett, J. W. (2018). Physics for Scientists and Engineers (10th ed.). Cengage Learning.

Additional Resources

Khan Academy: Snell's Law and Refraction
Physics Classroom: Refraction and Snell's Law
HyperPhysics: Refraction and Snell's Law
Calculating the Critical Angle: A Key Concept in Physics ===========================================================

Q&A: Critical Angle Calculations

Q: What is the critical angle, and why is it important in physics? A: The critical angle is the angle of incidence above which total internal reflection occurs. It is an important concept in physics, particularly in the field of optics, as it helps us understand the behavior of light as it passes from one medium to another.

Q: How do you calculate the critical angle using Snell's law? A: To calculate the critical angle, we need to rearrange Snell's law to solve for the angle of incidence (θ1). We can do this by setting the angle of refraction (θ2) to 90 degrees, since at the critical angle, the light is completely reflected back into the first medium.

Q: What is Snell's law, and how does it relate to the critical angle? A: Snell's law is a fundamental principle in optics that describes the behavior of light as it passes from one medium to another. It states that the ratio of the sines of the angles of incidence and refraction is equal to the ratio of the velocities of the two media, or equivalently, the ratio of their refractive indices.

Q: What are the refractive indices of glass and ice, and how do they affect the critical angle? A: The refractive index of glass (n1) is 1.90, and the refractive index of ice (n2) is 1.31. These values are used in the calculation of the critical angle using Snell's law.

Q: How do you calculate the critical angle between glass and ice? A: To calculate the critical angle between glass and ice, we need to use Snell's law and rearrange it to solve for the angle of incidence (θ1). We can do this by setting the angle of refraction (θ2) to 90 degrees and using the refractive indices of glass and ice.

Q: What is the critical angle between glass and ice? A: The critical angle between glass and ice is approximately 43.02°.

Q: Why is the critical angle important in real-world applications? A: The critical angle is important in real-world applications such as fiber optics, where it determines the maximum angle of incidence for total internal reflection. It is also important in the design of optical instruments, such as microscopes and telescopes.

Q: Can you provide examples of how the critical angle is used in different fields? A: Yes, the critical angle is used in various fields, including:

Fiber optics: The critical angle determines the maximum angle of incidence for total internal reflection, which is essential for the transmission of light through optical fibers.
Optics: The critical angle is used in the design of optical instruments, such as microscopes and telescopes, to ensure that light is focused correctly.
Materials science: The critical angle is used to study the properties of materials, such as their refractive indices and optical properties.

Q: How can I learn more about the critical angle and its applications? A: You can learn more about the critical angle and its applications by reading books and articles on optics and physics, attending lectures and workshops, and participating in online forums and discussions.
