Introduction

An ellipse is a fundamental concept in mathematics, particularly in geometry and algebra. It is a closed curve on a plane surrounding two focal points such that the sum of the distances to the two focal points is constant. In this article, we will delve into the world of ellipses, exploring their properties, equations, and applications. We will focus on a specific type of ellipse with a center at the origin, a vertex along the major axis at (20,0), and a focus at (16,0). Our goal is to derive the equation of this ellipse in the standard form and understand its key characteristics.

Properties of Ellipses

An ellipse has several distinct properties that set it apart from other geometric shapes. Some of the key properties include:

Center: The center of an ellipse is the point equidistant from the two foci. In our case, the center is at the origin (0,0).
Vertices: The vertices of an ellipse are the points on the major axis farthest from the center. In our case, one vertex is at (20,0).
Foci: The foci of an ellipse are the points inside the ellipse that are used to define its shape. In our case, one focus is at (16,0).
Major Axis: The major axis of an ellipse is the longest diameter that passes through the center and both foci. In our case, the major axis is the x-axis.
Minor Axis: The minor axis of an ellipse is the shortest diameter that passes through the center and is perpendicular to the major axis. In our case, the minor axis is the y-axis.

Equation of an Ellipse

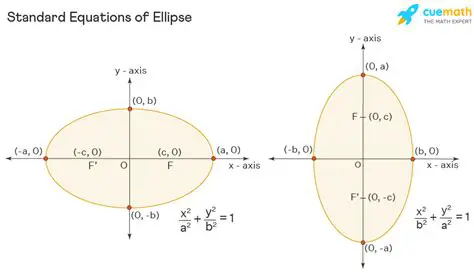

The standard equation of an ellipse in the form $\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1$ is given by:

\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1

where $a$ is the length of the semi-major axis and $b$ is the length of the semi-minor axis.

Deriving the Equation of the Ellipse

To derive the equation of the ellipse, we need to determine the values of $a$ and $b$ . We are given that the vertex is at (20,0) and the focus is at (16,0). Using the distance formula, we can calculate the distance between the center and the vertex, which is equal to $a$ . Similarly, we can calculate the distance between the center and the focus, which is equal to $c$ , where $c$ is the distance from the center to either focus.

The distance between the center and the vertex is given by:

a = \sqrt{(20-0)^2 + (0-0)^2} = 20

The distance between the center and the focus is given by:

c = \sqrt{(16-0)^2 + (0-0)^2} = 16

Using the relationship between $a$ , $b$ , and $c$ for an ellipse, we have:

b^2 = a^2 - c^2

Substituting the values of $a$ and $c$ , we get:

b^2 = 20^2 - 16^2 = 400 - 256 = 144

Therefore, the equation of the ellipse is:

\frac{x^2}{20^2} + \frac{y^2}{144} = 1

Key Characteristics of the Ellipse

The equation of the ellipse provides valuable information about its key characteristics. Some of the key characteristics include:

Semi-major Axis: The semi-major axis is the distance from the center to the vertex, which is equal to $a$ . In our case, the semi-major axis is 20.
Semi-minor Axis: The semi-minor axis is the distance from the center to the co-vertex, which is equal to $b$ . In our case, the semi-minor axis is 12.
Focal Length: The focal length is the distance from the center to either focus, which is equal to $c$ . In our case, the focal length is 16.

Applications of Ellipses

Ellipses have numerous applications in various fields, including:

Astronomy: Ellipses are used to model the orbits of planets and other celestial bodies.
Engineering: Ellipses are used in the design of mechanical systems, such as gears and bearings.
Computer Science: Ellipses are used in computer graphics and game development to create realistic shapes and animations.

Conclusion

Frequently Asked Questions

In this article, we will address some of the most frequently asked questions about ellipses, providing detailed explanations and examples to help clarify the concepts.

Q: What is an ellipse?

A: An ellipse is a closed curve on a plane surrounding two focal points such that the sum of the distances to the two focal points is constant.

Q: What are the key properties of an ellipse?

A: The key properties of an ellipse include:

Center: The center of an ellipse is the point equidistant from the two foci.
Vertices: The vertices of an ellipse are the points on the major axis farthest from the center.
Foci: The foci of an ellipse are the points inside the ellipse that are used to define its shape.
Major Axis: The major axis of an ellipse is the longest diameter that passes through the center and both foci.
Minor Axis: The minor axis of an ellipse is the shortest diameter that passes through the center and is perpendicular to the major axis.

Q: What is the standard equation of an ellipse?

A: The standard equation of an ellipse in the form $\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1$ is given by:

\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1

where $a$ is the length of the semi-major axis and $b$ is the length of the semi-minor axis.

Q: How do I derive the equation of an ellipse?

A: To derive the equation of an ellipse, you need to determine the values of $a$ and $b$ . You can use the distance formula to calculate the distance between the center and the vertex, which is equal to $a$ . Similarly, you can calculate the distance between the center and the focus, which is equal to $c$ , where $c$ is the distance from the center to either focus.

Q: What are the key characteristics of an ellipse?

A: The key characteristics of an ellipse include:

Semi-major Axis: The semi-major axis is the distance from the center to the vertex, which is equal to $a$ .
Semi-minor Axis: The semi-minor axis is the distance from the center to the co-vertex, which is equal to $b$ .
Focal Length: The focal length is the distance from the center to either focus, which is equal to $c$ .

Q: What are the applications of ellipses?

A: Ellipses have numerous applications in various fields, including:

Astronomy: Ellipses are used to model the orbits of planets and other celestial bodies.
Engineering: Ellipses are used in the design of mechanical systems, such as gears and bearings.
Computer Science: Ellipses are used in computer graphics and game development to create realistic shapes and animations.

Q: How do I graph an ellipse?

A: To graph an ellipse, you need to plot the points on the major and minor axes and connect them with a smooth curve. You can use a graphing calculator or software to help you graph the ellipse.

Q: What are the different types of ellipses?

A: There are several types of ellipses, including:

Horizontal Ellipse: A horizontal ellipse is an ellipse that is wider than it is tall.
Vertical Ellipse: A vertical ellipse is an ellipse that is taller than it is wide.
Circular Ellipse: A circular ellipse is an ellipse that is a perfect circle.

Conclusion

In conclusion, ellipses are fundamental geometric shapes with unique properties and applications. By understanding the equation and key characteristics of an ellipse, you can gain valuable insights into its behavior and uses. We hope that this Q&A guide has helped to clarify any questions you may have had about ellipses. If you have any further questions, please don't hesitate to ask.
