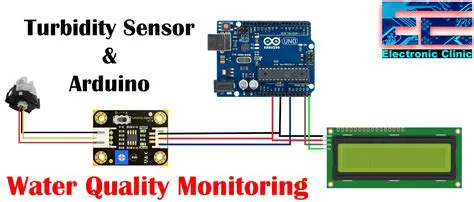

Detecting Water Turbidity using Arduino ATmega328-based Turbidity Sensor based on the Principle of Light Scattering

Introduction

Water is an essential component of human life, making up approximately 80% of the human body. The presence of mineral elements in water is also crucial for physical development. However, the quality of the water we consume has a significant impact on our health. One indicator of water quality is the level of turbidity. Turbid water is a sign that the water is not clean and can potentially endanger health. Therefore, it is essential to be able to measure the level of turbidity of water using the right technology, such as the Arduino ATmega328-based Turbidity Sensor.

The Importance of Water Quality

Water quality is a critical aspect of public health. The World Health Organization (WHO) estimates that approximately 2.1 billion people worldwide lack access to safe drinking water. This lack of access to clean water can lead to various health problems, including waterborne diseases such as cholera, typhoid, and dysentery. Therefore, it is crucial to monitor and maintain the quality of water to ensure public health.

Working Principle of Turbidity Sensor

The turbidity sensor functions on the basic principle of light scattering. In this tool, LED light is used as a source of light that will pass through a medium containing water samples to be measured. When the LED light enters the water, the particles contained in the water will cause the light to be scattered in various directions. The more particles in the water, the more light is scattered. To measure the level of turbidity, we use the ratio between the intensity of scattered light (IS) and the intensity of the light entering the medium (IP). Thus, the value of IS/IP will be an indicator of the turbidity level (T) of the measured water sample.

Measurement Process

In its implementation, this tool is equipped with an Arduino-based ATmega 32 microcontroller to process data. The voltage generated from the photodiode sensor, which was originally in the form of analog data, is then converted into digital data using the ADC (Analog to Digital Converter) facility. This measurement data can be displayed on the LCD screen to provide clear information about the level of turbidity of the water tested.

Components of the Turbidity Sensor

The turbidity sensor consists of the following components:

LED Light Source: The LED light source is used to illuminate the water sample.
Photodiode Sensor: The photodiode sensor is used to measure the intensity of the scattered light.
ADC (Analog to Digital Converter): The ADC facility is used to convert the analog data from the photodiode sensor into digital data.
Arduino-based ATmega 32 Microcontroller: The Arduino-based ATmega 32 microcontroller is used to process the data and display the measurement results on the LCD screen.

Analysis and Benefits

The use of Arduino-based turbidimeters in detecting water turbidity has various benefits. First, this tool provides an efficient and accurate way to measure water quality, which is very important to maintain public health. Second, the use of Arduino microcontroller makes this tool easy to develop and adjusted to the needs of the user. Third, the measurement results that can be displayed in real-time allow users to immediately take action if the turbidity of the water exceeds the desired limit.

Conclusion

In conclusion, the Arduino ATmega328-based Turbidity Sensor is a useful tool for detecting water turbidity based on the principle of light scattering. This tool provides an efficient and accurate way to measure water quality, which is essential for maintaining public health. The use of Arduino microcontroller makes this tool easy to develop and adjusted to the needs of the user. Therefore, this technology can be used to improve awareness of the importance of water quality and to monitor and maintain the health of the environment.

Future Research Directions

This technology also opens opportunities for further research in the field of water quality and the development of other more sophisticated and appropriate measuring devices. Some potential research directions include:

Development of more accurate and sensitive turbidity sensors: Further research can be conducted to develop more accurate and sensitive turbidity sensors that can detect even small changes in water quality.
Integration with other water quality parameters: The turbidity sensor can be integrated with other water quality parameters, such as pH, temperature, and dissolved oxygen, to provide a more comprehensive understanding of water quality.
Development of portable and wireless turbidity sensors: Further research can be conducted to develop portable and wireless turbidity sensors that can be used in remote areas or in situations where access to electricity is limited.

References

World Health Organization. (2019). Water, Sanitation and Hygiene.
United States Environmental Protection Agency. (2020). Drinking Water and Ground Water Statistics for 2020.
Arduino. (2020). Arduino ATmega 32 Microcontroller.
Photodiode Sensor. (2020). Photodiode Sensor Datasheet.
Frequently Asked Questions (FAQs) about Detecting Water Turbidity using Arduino ATmega328-based Turbidity Sensor

Q: What is the principle behind the Arduino ATmega328-based Turbidity Sensor?

A: The Arduino ATmega328-based Turbidity Sensor functions on the basic principle of light scattering. In this tool, LED light is used as a source of light that will pass through a medium containing water samples to be measured. When the LED light enters the water, the particles contained in the water will cause the light to be scattered in various directions. The more particles in the water, the more light is scattered.

Q: How does the turbidity sensor measure the level of turbidity?

A: To measure the level of turbidity, we use the ratio between the intensity of scattered light (IS) and the intensity of the light entering the medium (IP). Thus, the value of IS/IP will be an indicator of the turbidity level (T) of the measured water sample.

Q: What are the components of the turbidity sensor?

A: The turbidity sensor consists of the following components:

LED Light Source: The LED light source is used to illuminate the water sample.
Photodiode Sensor: The photodiode sensor is used to measure the intensity of the scattered light.
ADC (Analog to Digital Converter): The ADC facility is used to convert the analog data from the photodiode sensor into digital data.
Arduino-based ATmega 32 Microcontroller: The Arduino-based ATmega 32 microcontroller is used to process the data and display the measurement results on the LCD screen.

Q: How does the turbidity sensor display the measurement results?

A: The measurement data can be displayed on the LCD screen to provide clear information about the level of turbidity of the water tested.

Q: What are the benefits of using the Arduino ATmega328-based Turbidity Sensor?

A: The use of Arduino-based turbidimeters in detecting water turbidity has various benefits, including:

Efficient and accurate measurement of water quality: This tool provides an efficient and accurate way to measure water quality, which is very important to maintain public health.
Easy to develop and adjust: The use of Arduino microcontroller makes this tool easy to develop and adjusted to the needs of the user.
Real-time measurement results: The measurement results that can be displayed in real-time allow users to immediately take action if the turbidity of the water exceeds the desired limit.

Q: Can the turbidity sensor be used in remote areas or in situations where access to electricity is limited?

A: Further research can be conducted to develop portable and wireless turbidity sensors that can be used in remote areas or in situations where access to electricity is limited.

Q: Can the turbidity sensor be integrated with other water quality parameters?

A: Yes, the turbidity sensor can be integrated with other water quality parameters, such as pH, temperature, and dissolved oxygen, to provide a more comprehensive understanding of water quality.

Q: What are the potential applications of the Arduino ATmega328-based Turbidity Sensor?

A: The Arduino ATmega328-based Turbidity Sensor has various potential applications, including:

Water treatment plants: This tool can be used to monitor and maintain the quality of water in water treatment plants.
Drinking water distribution systems: This tool can be used to monitor and maintain the quality of drinking water in distribution systems.
Environmental monitoring: This tool can be used to monitor and maintain the quality of water in environmental monitoring systems.

Q: How can I purchase or obtain the Arduino ATmega328-based Turbidity Sensor?

A: The Arduino ATmega328-based Turbidity Sensor can be purchased or obtained from various online retailers or suppliers. You can also contact the manufacturer or distributor for more information on how to obtain this tool.
