ECU: Unravelling the Engine Control Unit’s Pivotal Role in Modern Vehicles

In the intricate world of contemporary automobiles, the ECU, or Engine Control Unit, stands as the undisputed central nervous system for a vehicle’s powertrain. Far from a simple component, the ECU is a highly sophisticated electronic control module, a miniature computer that precisely monitors and regulates almost every aspect of an engine’s operation. Its evolution from rudimentary mechanical systems to today’s advanced digital processors underscores the automotive industry’s relentless pursuit of efficiency, performance, and environmental responsibility. Without a meticulously calibrated ECU, a modern car would struggle to start, let alone deliver the smooth, powerful, and economical ride drivers have come to expect.

This crucial device processes an enormous amount of data in real-time, receiving signals from dozens of sensors strategically placed throughout the engine bay. These sensors report on everything from engine speed and load to air temperature, oxygen levels in the exhaust, and accelerator pedal position. The ECU then uses this information to make instantaneous decisions, dictating the perfect timing for fuel injection, the optimal spark advance, and even adjusting valve timing to maximise power output while simultaneously minimising fuel consumption and harmful emissions. It is truly the brains behind the brawn, ensuring that the engine operates within its optimal parameters under all driving conditions. The complexity of managing these interconnected systems has propelled the ECU into a critical role, making it an indispensable element in modern automotive engineering and a fascinating subject for anyone interested in how their car truly works.

What is an ECU and How Does it Function?

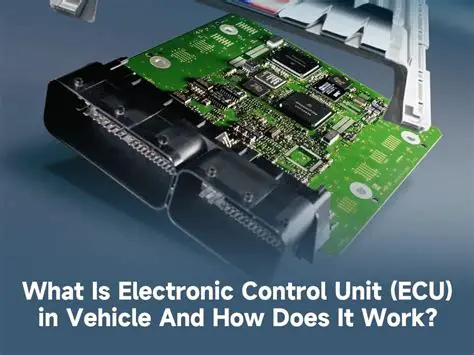

At its core, an ECU (Engine Control Unit) is an embedded computer system designed specifically to control and manage an internal combustion engine. It’s often referred to as the ‘brain’ of the engine because it interprets data from various sensors and uses this information to control a wide array of actuators that govern engine performance. The primary objective of the ECU is to ensure the engine operates as efficiently, powerfully, and cleanly as possible under diverse conditions. This involves a complex interplay of input, processing, and output, all occurring in a matter of milliseconds.

For instance, the ECU receives critical input from sensors such as the Oxygen (O2) sensor in the exhaust system, which measures the amount of unburnt oxygen to determine the air-fuel ratio. The Mass Air Flow (MAF) sensor gauges the air entering the engine, while the Throttle Position Sensor (TPS) indicates how much the driver is pressing the accelerator. Other vital inputs come from the Coolant Temperature Sensor, Crankshaft Position Sensor, and Camshaft Position Sensor, providing data on engine speed, position, and temperature. All this data flows into the ECU continually, forming a comprehensive picture of the engine’s current state. The real magic of the ECU lies in its ability to process these multiple inputs simultaneously and, based on pre-programmed maps and algorithms, calculate the precise outputs required for optimal engine function. It determines the exact amount of fuel to be injected by the fuel injectors, the precise timing for the ignition coils to fire the spark plugs, and adjusts the Variable Valve Timing (VVT) system to optimise airflow. Furthermore, the ECU manages the Exhaust Gas Recirculation (EGR) valve to reduce nitrogen oxide emissions and controls boost pressure in turbocharged engines. This continuous feedback loop, from sensors to ECU to actuators and back, is what allows a modern engine to adapt to changing demands—whether accelerating rapidly, cruising on the motorway, or idling in traffic. The computational power required for the ECU to perform these tasks in real-time, adjusting parameters hundreds of times per second, is truly remarkable, underpinning the sophisticated control systems integral to today’s vehicles. This sophisticated monitoring and adjustment ensure that the engine delivers consistent performance, fuel economy, and meets stringent emissions standards, making the ECU an indispensable component for any contemporary vehicle.

The Evolution of ECU Technology

The journey of the ECU is a fascinating testament to rapid technological advancement in automotive engineering. Early internal combustion engines relied entirely on mechanical and pneumatic systems to manage fuel delivery and ignition timing. Carburetors, for example, were rudimentary mechanical devices attempting to mix air and fuel, while distributors mechanically timed the spark. These systems, however, were inherently limited in their precision and adaptability, struggling to cope with varying altitudes, temperatures, and engine loads efficiently. The advent of electronic fuel injection (EFI) in the 1970s marked the first significant step towards electronic control, providing more accurate fuel metering than carburetors, primarily driven by emissions regulations demanding cleaner burning engines.

The true revolution began with the integration of microprocessors into automotive systems in the 1980s. This allowed for the development of the first true ECUs, which could process multiple sensor inputs digitally and calculate optimal outputs with unprecedented speed and accuracy. Initially, these ECUs focused primarily on fuel injection and ignition timing. However, as computing power grew and components became more miniature and robust, the capabilities of the ECU expanded dramatically. Soon, functionalities like idle speed control, exhaust gas recirculation (EGR), and evaporative emissions control were integrated. This expansion eventually led to the ECU evolving into more comprehensive modules, often referred to as Powertrain Control Modules (PCM) or Engine Control Modules (ECM), which encompass the management of both the engine and the automatic transmission. Modern ECUs are now highly integrated into the vehicle’s entire electronic architecture, communicating with other control units such as the Anti-lock Braking System (ABS), Traction Control System (TCS), Body Control Module (BCM), and even advanced driver-assistance systems (ADAS) via high-speed communication networks like CAN bus. This interconnectedness allows for a holistic approach to vehicle management, where various systems can share data and coordinate actions for enhanced safety, performance, and comfort. Furthermore, the modern ECU possesses advanced self-learning capabilities, adapting to driving styles and compensating for minor component wear over time, ensuring continued optimal performance throughout the vehicle’s lifespan. The stringent global emissions standards have been a major driving force behind the sophistication of the ECU, pushing engineers to create systems that can reduce pollutants to incredibly low levels while still delivering expected performance and fuel economy. The journey from simple mechanical linkages to complex, multi-core processors highlights the ECU’s critical role in shaping the modern automotive landscape, making vehicles not just faster or more economical, but also significantly cleaner and smarter.

Key Functions and Control Parameters of the ECU

The ECU’s operational scope extends far beyond basic engine functions, orchestrating a complex symphony of controls to ensure the vehicle performs optimally under virtually any circumstance. One of its most critical responsibilities is fuel injection control. The ECU precisely determines the exact amount of fuel to be sprayed into each cylinder and the precise moment of injection, considering factors such as engine load, RPM, air temperature, and oxygen levels. This meticulous control ensures that the air-fuel mixture is always at the ideal stoichiometric ratio for efficient combustion, typically 14.7 parts air to 1 part fuel by mass for petrol engines, which is crucial for both power and emissions control. A slightly richer mixture might be used for maximum power, while a leaner one enhances fuel economy during cruising.

Another fundamental function is ignition timing. The ECU calculates the optimal moment for the spark plugs to ignite the air-fuel mixture. This timing is critical; igniting too early (pre-ignition or knocking) can damage the engine, while igniting too late wastes power. The ECU continuously adjusts the spark advance based on factors like engine speed, load, and potential knock detection (using knock sensors), ensuring maximum power output and fuel efficiency without risking engine damage. Modern ECUs also manage Variable Valve Timing (VVT) systems, which allow the timing and duration of valve opening and closing to be adjusted. This enables the engine to optimize airflow into and out of the cylinders across different RPMs, enhancing both low-end torque and high-end horsepower, while also contributing to better fuel economy and reduced emissions. For turbocharged or supercharged engines, the ECU takes charge of boost pressure control, regulating the turbocharger’s wastegate or supercharger’s bypass valve to deliver the desired boost level for optimal performance without over-pressurizing the engine.

Furthermore, the ECU plays a vital role in emissions control beyond just managing the air-fuel ratio. It controls the Exhaust Gas Recirculation (EGR) valve to reintroduce a portion of exhaust gases back into the combustion chambers, reducing combustion temperatures and thereby limiting the formation of nitrogen oxides (NOx). It monitors the efficiency of the catalytic converter and, in diesel vehicles, manages the Diesel Particulate Filter (DPF) regeneration process. The ECU also includes a sophisticated diagnostics and fault management system. It continuously monitors all connected sensors and actuators. If a fault is detected, such as a sensor malfunction or an engine misfire, the ECU stores a Diagnostic Trouble Code (DTC) in its memory, illuminates the check engine light (MIL), and can even implement a ‘limp mode’ to protect the engine from further damage by restricting performance. This comprehensive suite of functions, all coordinated by the ECU, underscores its indispensable role in the smooth, efficient, and environmentally responsible operation of any modern vehicle, turning raw engine power into a finely tuned, adaptable driving experience.

The Impact of ECU on Vehicle Performance, Efficiency, and Emissions

The profound influence of the ECU on a vehicle’s overall characteristics cannot be overstated. It is the primary determinant of how an engine performs, how much fuel it consumes, and how environmentally friendly it is. A precisely calibrated ECU is the secret behind extracting the maximum potential from an engine. By meticulously controlling fuel injection and ignition timing, the ECU ensures that combustion occurs at the optimal point for generating power. This precise control results in increased horsepower and torque, translating into better acceleration, improved responsiveness, and a more engaging driving experience. Without the fine-tuned parameters dictated by the ECU, an engine would struggle to deliver its rated performance figures, feeling sluggish and unresponsive, especially during critical maneuvers like overtaking. It also enables advanced features such as drive-by-wire throttle systems, where the ECU translates pedal input into exact throttle plate movements, leading to smoother power delivery and greater control for the driver, enhancing both comfort and performance metrics significantly across various driving scenarios.

In terms of fuel efficiency, the ECU is an absolute game-changer. Older, mechanically controlled engines often wasted fuel due to imprecise mixture control. Modern ECUs, however, constantly monitor and adjust the air-fuel ratio, valve timing, and other parameters to ensure that only the exact amount of fuel needed for the current driving conditions is injected. This dynamic optimization means less fuel is wasted, leading to significantly better miles per gallon (MPG) figures. For instance, during steady-state cruising, the ECU might lean out the mixture slightly and adjust valve overlap to maximise economy, a feat impossible with older systems. The ability of the ECU to adapt in real-time to varying loads, speeds, and environmental factors ensures that the engine is always running at its most economical point without sacrificing necessary power, directly translating into tangible savings at the fuel pump for the consumer over the vehicle’s lifespan. This continuous adjustment process is a cornerstone of modern vehicle economy.

Perhaps one of the most significant impacts of the ECU is its role in emissions reduction. With increasingly stringent global emissions standards, the ECU is instrumental in ensuring vehicles meet these demanding targets. By maintaining the ideal air-fuel ratio, the ECU helps the catalytic converter operate at peak efficiency, converting harmful pollutants like carbon monoxide, nitrogen oxides, and unburnt hydrocarbons into less harmful substances. The ECU also manages systems like Exhaust Gas Recirculation (EGR) and controls secondary air injection, further reducing the formation of pollutants. In diesel engines, the ECU orchestrates the complex regeneration cycles of the Diesel Particulate Filter (DPF) to burn off trapped soot. Without the sophisticated control offered by the ECU, meeting modern emissions regulations would be virtually impossible, leading to significantly higher levels of air pollution. The ECU not only makes cars more powerful and efficient but also plays a critical role in their environmental responsibility, making them cleaner and more sustainable for the planet. Its integrated approach to managing these three pillars—performance, efficiency, and emissions—makes the ECU arguably the most influential single component in a modern vehicle.

ECU Tuning and Remapping: Unleashing Hidden Potential

The inherent programmability of the ECU opens up an intriguing avenue for vehicle enthusiasts and performance seekers: ECU tuning or remapping. Essentially, ECU tuning involves modifying the software parameters stored within the unit, which dictate how the engine operates. Manufacturers typically program ECUs with a set of parameters that offer a balance of performance, fuel economy, reliability, and emissions compliance across various markets and fuel qualities. This often means there’s a margin for improvement, a ‘hidden potential’ that can be unlocked by altering these factory settings. The primary benefits sought through ECU tuning include increased horsepower and torque, improved throttle response, and sometimes even better fuel economy, depending on the specific tuning objectives and the vehicle in question. A common approach is to adjust parameters like fuel pressure, injection timing, ignition advance, turbo boost pressure, and rev limiters. By optimising these settings, a tuned ECU can allow the engine to produce more power than its stock configuration, often resulting in a noticeably more spirited and responsive driving experience, especially in turbocharged vehicles where significant gains can be achieved by carefully increasing boost levels.

However, while the appeal of more power is strong, ECU tuning comes with considerable risks and considerations. Improper tuning can lead to severe engine damage, such as piston melting, valve damage, or turbocharger failure, if parameters are pushed beyond the engine’s mechanical limits or if fuel delivery is insufficient. It can also lead to increased wear and tear on components like the clutch, gearbox, and drivetrain. Furthermore, modifying the ECU software almost invariably voids the manufacturer’s warranty, leaving the owner responsible for any subsequent engine or transmission failures. There are also legal and emissions implications; a tuned ECU might cause the vehicle to fail emissions tests in regions with strict regulations, and some modifications might not be road-legal. The choice between professional tuning and generic ‘off-the-shelf’ tunes is also critical. Professional tuners, often referred to as calibrators, use dynamometers and specialised diagnostic tools to custom-tune the ECU for a specific vehicle and its modifications (e.g., upgraded exhaust, intake). This bespoke approach helps ensure reliability and optimises the tune for the individual engine. In contrast, generic tunes, while cheaper, might not be perfectly suited to every vehicle and carry higher risks. Understanding the original ECU parameters and the engineering compromises made by the manufacturer is vital before considering any form of tuning. Ultimately, ECU tuning presents a powerful way to enhance vehicle performance, but it demands careful consideration of both its potential benefits and its inherent risks, emphasising the importance of responsible modification and professional expertise to maintain the longevity and legality of the vehicle.

Conclusion: The ECU as the Enduring Core of Automotive Innovation

In conclusion, the ECU, or Engine Control Unit, is far more than just a computer chip in your car; it is the veritable brain and nervous system that brings a vehicle’s powertrain to life. Its indispensable role in managing the intricate dance of combustion, from precise fuel injection to optimal ignition timing and advanced emissions control, underpins virtually every aspect of a modern vehicle’s performance, efficiency, and environmental footprint. The journey of the ECU from rudimentary electronic components to today’s sophisticated, multi-core processors reflects a relentless pursuit of engineering excellence and highlights its central position in automotive innovation.

As vehicles become increasingly complex, integrating advanced driver-assistance systems (ADAS), electrification, and connectivity, the ECU continues to evolve. Future developments are likely to see even greater computational power, enhanced cybersecurity measures to protect against hacking, and the integration of artificial intelligence for predictive maintenance and even more refined engine management. Over-the-air (OTA) updates, similar to those on smartphones, are also becoming more prevalent, allowing ECU software to be updated remotely, improving functionality and addressing potential issues without a trip to the dealership. The ECU will undoubtedly remain at the forefront of automotive technology, continually adapting and expanding its capabilities to meet new challenges and redefine what is possible in vehicle dynamics and environmental stewardship. Its continued evolution promises even smarter, cleaner, and more efficient vehicles, cementing its status as an enduring core component of modern automotive engineering.
