Finding the Angle of Refraction

Oct 13, 2025 by recoveryshake.com 27 views

$Finding the Angle of Refraction$

Introduction

When a ray of light passes from one medium to another, it undergoes refraction, which is the bending of light as it passes from one medium to another with a different optical density. The amount of bending that occurs depends on the angle of incidence and the refractive indices of the two media involved. In this article, we will explore the concept of refraction and use Snell's Law to determine the angle at which a ray of light travels in water after hitting the surface of water at an angle of 41.0 degrees.

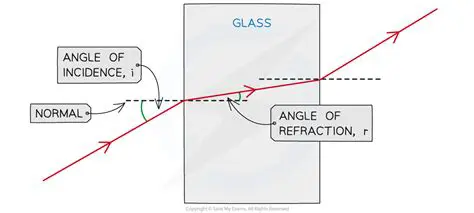

What is Refraction?

Refraction is the bending of light as it passes from one medium to another with a different optical density. This occurs because light travels at different speeds in different media. When light passes from a medium with a higher optical density to a medium with a lower optical density, it slows down and bends towards the normal. Conversely, when light passes from a medium with a lower optical density to a medium with a higher optical density, it speeds up and bends away from the normal.

Snell's Law

Snell's Law is a mathematical formula that describes the relationship between the angles of incidence and refraction when light passes from one medium to another. The law is named after the Dutch mathematician Willebrord Snellius, who first described it in the 17th century. Snell's Law is expressed as:

n1 sin(θ1) = n2 sin(θ2)

where n1 and n2 are the refractive indices of the two media, θ1 is the angle of incidence, and θ2 is the angle of refraction.

Applying Snell's Law to the Problem

In this problem, we are given that a ray of light hits the surface of water at an angle of 41.0 degrees. We are also given the refractive indices of water (n = 1.33) and air (n = 1.00). We can use Snell's Law to determine the angle at which the ray of light travels in water.

First, we need to identify the values of n1, θ1, and n2. In this case, n1 = 1.00 (air), θ1 = 41.0 degrees, and n2 = 1.33 (water). We can now plug these values into Snell's Law:

1.00 sin(41.0) = 1.33 sin(θ2)

Solving for θ2

To solve for θ2, we can start by evaluating the left-hand side of the equation:

1.00 sin(41.0) = 0.656

Now, we can divide both sides of the equation by 1.33 to isolate sin(θ2):

sin(θ2) = 0.656 / 1.33 sin(θ2) = 0.493

Finding the Angle of Refraction

To find the angle of refraction (θ2), we can take the inverse sine (sin^-1) of both sides of the equation:

θ2 = sin^-1(0.493) θ2 = 29.7 degrees

Conclusion

In this article, we used Snell's Law to determine the angle at which a ray of light travels in water after hitting the surface of water at an angle of 41.0 degrees. We found that the angle of refraction is approximately 29.7 degrees. This demonstrates the importance of understanding refraction and Snell's Law in physics, as it has numerous applications in fields such as optics, astronomy, and engineering.

Real-World Applications

Refraction and Snell's Law have numerous real-world applications. For example, in optics, refraction is used to create lenses and prisms that can bend light in specific ways. In astronomy, refraction is used to correct for the bending of light as it passes through the Earth's atmosphere. In engineering, refraction is used to design optical systems such as telescopes and microscopes.

Limitations of Snell's Law

While Snell's Law is a powerful tool for understanding refraction, it has some limitations. For example, it assumes that the refractive indices of the two media are constant, which is not always the case. Additionally, it assumes that the light is traveling in a straight line, which is not always true. In reality, light can be affected by various factors such as polarization and dispersion, which can affect the angle of refraction.

Future Research Directions

Future research directions in the field of refraction and Snell's Law include developing more accurate models of refraction that take into account the complexities of real-world systems. Additionally, researchers are working to develop new materials and technologies that can manipulate light in specific ways, such as metamaterials and optical fibers.

Conclusion

In conclusion, Snell's Law is a fundamental concept in physics that describes the relationship between the angles of incidence and refraction when light passes from one medium to another. By applying Snell's Law to a real-world problem, we can gain a deeper understanding of the behavior of light and its interactions with different media. As we continue to explore the properties of light and its interactions with matter, we may uncover new and exciting applications of refraction and Snell's Law.

Q: What is refraction?

A: Refraction is the bending of light as it passes from one medium to another with a different optical density. This occurs because light travels at different speeds in different media.

Q: What is Snell's Law?

A: Snell's Law is a mathematical formula that describes the relationship between the angles of incidence and refraction when light passes from one medium to another. It is expressed as:

n1 sin(θ1) = n2 sin(θ2)

where n1 and n2 are the refractive indices of the two media, θ1 is the angle of incidence, and θ2 is the angle of refraction.

Q: What are the refractive indices of common materials?

A: The refractive indices of common materials are:

Air: n = 1.00
Water: n = 1.33
Glass: n = 1.50
Diamond: n = 2.42

Q: How does refraction affect the behavior of light?

A: Refraction affects the behavior of light in several ways:

It bends light as it passes from one medium to another.
It changes the speed of light as it passes from one medium to another.
It can cause light to be split into different colors (dispersion).

Q: What are some real-world applications of refraction and Snell's Law?

A: Some real-world applications of refraction and Snell's Law include:

Lenses and prisms in optics
Telescopes and microscopes in astronomy and biology
Optical fibers in telecommunications
Metamaterials and optical cloaking in materials science

Q: What are some limitations of Snell's Law?

A: Some limitations of Snell's Law include:

It assumes that the refractive indices of the two media are constant.
It assumes that the light is traveling in a straight line.
It does not take into account the complexities of real-world systems.

Q: How can I use Snell's Law to solve problems?

A: To use Snell's Law to solve problems, follow these steps:

Identify the refractive indices of the two media.
Identify the angle of incidence.
Plug the values into Snell's Law equation.
Solve for the angle of refraction.

Q: What are some common mistakes to avoid when using Snell's Law?

A: Some common mistakes to avoid when using Snell's Law include:

Forgetting to convert the angle of incidence to radians.
Forgetting to use the correct refractive indices.
Not checking the units of the answer.

Q: How can I learn more about refraction and Snell's Law?

A: To learn more about refraction and Snell's Law, try the following:

Read books and articles on the subject.
Watch online tutorials and videos.
Practice solving problems using Snell's Law.
Join online communities and forums to discuss the topic with others.

Q: What are some advanced topics in refraction and Snell's Law?

A: Some advanced topics in refraction and Snell's Law include:

Polarization and dispersion.
Metamaterials and optical cloaking.
Nonlinear optics and quantum optics.
Optical fibers and telecommunications.

Q: How can I apply refraction and Snell's Law to real-world problems?

A: To apply refraction and Snell's Law to real-world problems, try the following:

Identify the refractive indices of the materials involved.
Determine the angle of incidence.
Use Snell's Law to calculate the angle of refraction.
Consider the limitations of Snell's Law and the complexities of real-world systems.

Q: What are some future research directions in refraction and Snell's Law?

A: Some future research directions in refraction and Snell's Law include:

Developing more accurate models of refraction that take into account the complexities of real-world systems.
Exploring new materials and technologies that can manipulate light in specific ways.
Investigating the applications of refraction and Snell's Law in fields such as medicine and materials science.
