Introduction

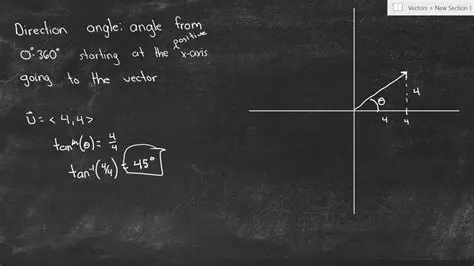

In mathematics, vectors are used to represent quantities with both magnitude and direction. The direction angle of a vector is the angle it makes with the positive x-axis in a standard coordinate system. In this article, we will learn how to find the approximate direction angle of a given vector.

What is a Vector?

A vector is a mathematical object that has both magnitude (length) and direction. It can be represented graphically as an arrow in a coordinate system. Vectors are commonly used in physics, engineering, and other fields to describe quantities such as force, velocity, and acceleration.

The Given Vector

Let $$v = \langle 3, -2 \rangle$$. This means that the vector $$v$$ has an x-component of 3 and a y-component of -2.

Finding the Direction Angle

To find the direction angle of a vector, we can use the following formula:

\theta = \tan^{-1}\left(\frac{y}{x}\right)

where $$\theta$$ is the direction angle, $$y$$ is the y-component of the vector, and $$x$$ is the x-component of the vector.

Applying the Formula

In our case, the x-component of the vector $$v$$ is 3, and the y-component is -2. Plugging these values into the formula, we get:

\theta = \tan^{-1}\left(\frac{-2}{3}\right)

Evaluating the Inverse Tangent

The inverse tangent function returns an angle in radians. To convert this angle to degrees, we can multiply it by $$\frac{180}{\pi}$$.

Using a calculator, we find that:

\theta \approx -33.69^{\circ}

Rounding to the Nearest Answer Choice

Since the answer choices are given in degrees, we can round our result to the nearest answer choice. In this case, the closest answer choice is:

A. $34^{\circ}$

Conclusion

In this article, we learned how to find the approximate direction angle of a given vector. We applied the formula $$\theta = \tan^{-1}\left(\frac{y}{x}\right)$$ to the vector $$v = \langle 3, -2 \rangle$$ and found that the direction angle is approximately $$34^{\circ}$$.

Key Takeaways

Vectors have both magnitude and direction.
The direction angle of a vector is the angle it makes with the positive x-axis.
The formula $$\theta = \tan^{-1}\left(\frac{y}{x}\right)$$ can be used to find the direction angle of a vector.
Inverse tangent returns an angle in radians, which can be converted to degrees by multiplying by $$\frac{180}{\pi}$$.

Practice Problems

Find the direction angle of the vector $$v = \langle 4, 3 \rangle$$.
Find the direction angle of the vector $$v = \langle -2, 1 \rangle$$.

Solutions

$\theta = \tan^{-1}\left(\frac{3}{4}\right) \approx 36.87^{\circ}$
$\theta = \tan^{-1}\left(\frac{1}{-2}\right) \approx -26.57^{\circ}$$<br/>$

Introduction

In our previous article, we learned how to find the approximate direction angle of a given vector. In this article, we will answer some frequently asked questions about direction angles.

Q: What is the direction angle of a vector?

A: The direction angle of a vector is the angle it makes with the positive x-axis in a standard coordinate system.

Q: How do I find the direction angle of a vector?

A: To find the direction angle of a vector, you can use the formula $$\theta = \tan^{-1}\left(\frac{y}{x}\right)$$, where $$\theta$$ is the direction angle, $$y$$ is the y-component of the vector, and $$x$$ is the x-component of the vector.

Q: What if the vector has a negative x-component or y-component?

A: If the vector has a negative x-component or y-component, you will need to adjust the angle accordingly. For example, if the vector has a negative x-component, you will need to add 180 degrees to the angle.

Q: Can I use a calculator to find the direction angle?

A: Yes, you can use a calculator to find the direction angle. Most calculators have a built-in inverse tangent function that can be used to find the direction angle.

Q: What if I get a negative angle?

A: If you get a negative angle, you can add 180 degrees to get the positive angle. For example, if you get an angle of -30 degrees, you can add 180 degrees to get an angle of 150 degrees.

Q: Can I use the direction angle to find the vector?

A: Yes, you can use the direction angle to find the vector. If you know the direction angle and the magnitude of the vector, you can use the formula $$v = \langle r \cos(\theta), r \sin(\theta) \rangle$$ to find the vector.

Q: What is the difference between the direction angle and the angle between two vectors?

A: The direction angle of a vector is the angle it makes with the positive x-axis, while the angle between two vectors is the angle between the two vectors themselves.

Q: Can I use the direction angle to find the angle between two vectors?

A: Yes, you can use the direction angle to find the angle between two vectors. If you know the direction angles of the two vectors, you can use the formula $$\theta_{12} = \theta_1 - \theta_2$$ to find the angle between the two vectors.

Q: What if I have a 3D vector?

A: If you have a 3D vector, you will need to use a different formula to find the direction angle. The formula for a 3D vector is $$\theta = \cos^{-1}\left(\frac{\mathbf{v} \cdot \mathbf{i}}{|\mathbf{v}| |\mathbf{i}|}\right)$$, where $$\mathbf{v}$$ is the 3D vector, $$\mathbf{i}$$ is the unit vector in the x-direction, and $$|\mathbf{v}|$$ is the magnitude of the vector.

Conclusion

In this article, we answered some frequently asked questions about direction angles. We hope that this article has been helpful in clarifying any confusion you may have had about direction angles.

Key Takeaways

The direction angle of a vector is the angle it makes with the positive x-axis.
The formula $$\theta = \tan^{-1}\left(\frac{y}{x}\right)$$ can be used to find the direction angle of a vector.
If the vector has a negative x-component or y-component, you will need to adjust the angle accordingly.
You can use a calculator to find the direction angle.
You can use the direction angle to find the vector.
The direction angle is different from the angle between two vectors.
