Introduction

The rapid development in the fields of communication, technology, and information has changed the way we interact. One example is data communication, which allows us to connect to the world via the internet, short messages (SMS), and email. Data communication utilizes digital signals, which are basically a series of binary bits that are translated into certain codes. The process of changing continuous analog signals into digital signals is known as analog to digital conversion. This process is crucial in various applications, including telecommunications, medical devices, and audio equipment.

Understanding Analog to Digital Conversion

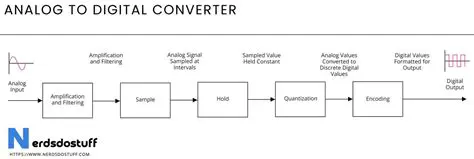

Analog to digital conversion is the process of converting continuous analog signals into discrete digital signals. This process involves three main stages:

Sampling

At this stage, the analog signal is taken regularly. The sampling frequency determines how often the sample is taken in one second. The sampling frequency is a critical parameter in analog to digital conversion, as it affects the accuracy of the digital representation. A higher sampling frequency can result in a more accurate digital representation, but it also increases the computational complexity and power consumption.

Quantization

Analog signal samples are converted into discrete values according to the quantification level. The more quantification levels, the more accurate the digital representation. Quantization is a critical step in analog to digital conversion, as it determines the resolution of the digital signal. A higher quantization level can result in a more accurate digital representation, but it also increases the computational complexity and power consumption.

Coding

Discrete values from the quantization results are then converted into binary codes. This binary code represents digital signals that can be processed and transmitted. Coding is a critical step in analog to digital conversion, as it determines the format of the digital signal. There are various coding schemes, including pulse code modulation (PCM), delta modulation (DM), and delta-sigma modulation (DSM).

Designing an Analog to Digital Converter Module

In this final project, an ADC module was developed that can be used for practical learning in the telecommunications basic laboratory. This module has specific characteristics:

Minimum Voltage

The minimum voltage that can be detected by the ADC module is 0V, which corresponds to a binary code of 0000 0000.

Maximum Voltage

The maximum voltage that can be detected by the ADC module is 5V, which corresponds to a binary code of 1111 1111.

Voltage Increase per Bit

The voltage increase per bit is 0.019V, which means that each bit of the digital signal corresponds to a specific voltage range.

Applications of the ADC Module

This ADC module is designed to help students understand the process of conversion of analog to digital in more depth. Through practicum, students can learn how ADC works, the effect of changes in parameters such as input voltage and resolution to digital signals, as well as understanding the basic principles of data communication. With this ADC module, the basic laboratory of telecommunications has a more complete and interactive learning aids. This will facilitate the teaching and learning process and increase students' understanding of digital communication technology that continues to develop.

Benefits of the ADC Module

The ADC module has several benefits, including:

Improved understanding of analog to digital conversion: The ADC module provides a hands-on experience for students to understand the process of conversion of analog to digital.
Increased accuracy: The ADC module has a high accuracy, which ensures that the digital signal is a accurate representation of the analog signal.
Improved teaching and learning process: The ADC module provides a more interactive and engaging learning experience for students, which can improve their understanding of digital communication technology.
Cost-effective: The ADC module is a cost-effective solution for educational institutions, as it can be used for multiple students and can be easily integrated into existing laboratory equipment.

Conclusion

In conclusion, the ADC module is a valuable tool for educational institutions, particularly for telecommunications and engineering students. It provides a hands-on experience for students to understand the process of conversion of analog to digital, which is essential for digital communication technology. The ADC module has several benefits, including improved understanding of analog to digital conversion, increased accuracy, improved teaching and learning process, and cost-effectiveness. With this ADC module, the basic laboratory of telecommunications has a more complete and interactive learning aids, which can facilitate the teaching and learning process and increase students' understanding of digital communication technology.
