IPSec: Securing Network Communications Through Encryption and Authentication

IPSec, or Internet Protocol Security, is a crucial suite of protocols that secures Internet Protocol (IP) communications by authenticating and encrypting each IP packet in a data stream. It provides robust security for virtual private networks (VPNs) and other network connections, ensuring data confidentiality, integrity, and authenticity. In today’s world, where cyber threats are constantly evolving, understanding and implementing IPSec is paramount for any organization seeking to protect its sensitive data. This article delves into the intricacies of IPSec, exploring its architecture, modes of operation, and benefits in modern network security.

The importance of IPSec lies in its ability to establish secure channels for data transmission across potentially insecure networks, such as the internet. Without IPSec, data transmitted over the internet is vulnerable to eavesdropping, tampering, and other malicious activities. IPSec addresses these vulnerabilities by encrypting data packets, making them unreadable to unauthorized parties, and authenticating the sender to prevent spoofing and other forms of identity theft. This combination of encryption and authentication makes IPSec a powerful tool for securing network communications. Furthermore, the flexible nature of IPSec allows it to be implemented in various network environments and adapted to specific security requirements. From securing remote access connections for employees to protecting data transmitted between different branches of an organization, IPSec provides a versatile and reliable solution for a wide range of security challenges. As businesses increasingly rely on cloud-based services and remote workforces, the role of IPSec in maintaining secure and reliable network connections will only continue to grow. The adoption of IPSec has become a standard practice in network security, and organizations that fail to implement it risk exposing their sensitive data to potential breaches. Understanding the principles and functionalities of IPSec is, therefore, essential for IT professionals and anyone involved in protecting network infrastructure.

Understanding the IPSec Architecture

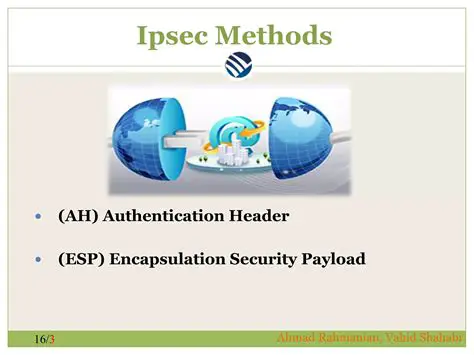

The IPSec architecture is built around two main protocols: Authentication Header (AH) and Encapsulating Security Payload (ESP). Both protocols provide distinct security services and can be used independently or in combination, depending on the specific security requirements. Let’s explore these protocols in detail:

Authentication Header (AH)

The Authentication Header (AH) provides data integrity and authentication for IP packets. It ensures that the packet has not been tampered with during transit and that the sender is who they claim to be. AH achieves this by adding a header to each IP packet that contains a cryptographic hash of the packet’s contents, including the IP header and the data payload. The receiver can then verify the integrity of the packet by recalculating the hash and comparing it to the hash in the AH header. If the hashes match, the packet is considered authentic and untampered. However, AH does not provide encryption, meaning the data payload is still visible to anyone who intercepts the packet. This makes AH suitable for situations where data confidentiality is not a primary concern, but data integrity and authentication are crucial. For example, AH might be used to secure network management traffic or to protect against routing attacks. The main advantages of AH are its simplicity and its ability to provide strong authentication without the overhead of encryption. However, its lack of encryption limits its usefulness in many scenarios where data confidentiality is paramount. In summary, the Authentication Header provides a critical layer of security by ensuring the integrity and authenticity of IP packets. However, its lack of encryption makes it unsuitable for protecting sensitive data from eavesdropping. In these cases, the Encapsulating Security Payload (ESP) protocol is preferred.

Encapsulating Security Payload (ESP)

The Encapsulating Security Payload (ESP), in contrast to AH, provides both encryption and authentication. It encrypts the entire IP packet payload, providing data confidentiality, and also includes an authentication mechanism to ensure data integrity and authenticity. ESP encrypts the data payload using various encryption algorithms, such as AES (Advanced Encryption Standard) or 3DES (Triple DES), making it unreadable to unauthorized parties. In addition to encryption, ESP also includes an integrity check value (ICV) in the ESP header, which is a cryptographic hash of the packet’s contents. The receiver can then verify the integrity of the packet by recalculating the hash and comparing it to the ICV in the ESP header. If the hashes match, the packet is considered authentic and untampered. The combination of encryption and authentication makes ESP a more comprehensive security solution than AH. It provides both data confidentiality and data integrity, making it suitable for a wide range of applications where sensitive data needs to be protected. For example, ESP is commonly used to secure VPN connections, protecting data transmitted between remote users and corporate networks. It can also be used to secure data transmitted between different branches of an organization or between an organization and its business partners. While ESP provides stronger security than AH, it also has a higher processing overhead due to the encryption and decryption processes. This can impact network performance, especially in high-bandwidth environments. However, modern hardware and software implementations of IPSec have significantly reduced this overhead, making ESP a viable option for most network environments. Overall, Encapsulating Security Payload offers a robust and comprehensive security solution that is widely used to protect sensitive data transmitted over IP networks. The combination of encryption and authentication provides strong data confidentiality and integrity, making it an essential component of modern network security.

IPSec Modes of Operation: Tunnel and Transport

IPSec operates in two primary modes: Tunnel mode and Transport mode. Each mode offers different levels of protection and is suitable for different network configurations. Understanding the nuances of each mode is crucial for effectively deploying IPSec.

Tunnel Mode

Tunnel mode encrypts the entire IP packet, including the header and the data payload. The original IP packet is encapsulated within a new IP packet, creating a tunnel between the two endpoints. This mode is typically used to secure communications between two gateways, such as two routers or firewalls, creating a VPN between two networks. In Tunnel Mode, the entire original IP packet is encrypted and encapsulated within a new IP packet. This new IP packet has its own IP header, which specifies the source and destination IP addresses of the IPSec gateways. The original IP packet is completely hidden from external observers, providing a high level of security. Tunnel mode is commonly used in site-to-site VPNs, where two or more networks are connected over the internet. In this scenario, each network has an IPSec gateway that encrypts and decrypts traffic passing between the networks. When a packet is sent from one network to another, the IPSec gateway at the sending network encrypts the packet and encapsulates it within a new IP packet. The new IP packet is then sent over the internet to the IPSec gateway at the receiving network. The receiving gateway decrypts the packet and forwards it to its final destination within the network. One of the key advantages of Tunnel mode is that it provides a high level of security and is relatively easy to implement. However, it also has a higher overhead than Transport mode, as the entire IP packet is encrypted and encapsulated. The security benefits of Tunnel mode are paramount when considering protecting an entire network’s data as it travels across public infrastructure. This makes tunnel mode the most secure option.

Transport Mode

Transport mode, on the other hand, only encrypts the data payload of the IP packet, leaving the IP header intact. This mode is typically used to secure communications between two hosts, such as two computers or servers. Transport mode encrypts only the payload of the IP packet, leaving the IP header unchanged. This means that the source and destination IP addresses are still visible to external observers. Transport mode is typically used to secure communication between two hosts, such as two computers or servers. In this scenario, each host has an IPSec client that encrypts and decrypts traffic passing between the hosts. When a packet is sent from one host to another, the IPSec client at the sending host encrypts the payload of the packet and adds an IPSec header to the packet. The packet is then sent over the network to the IPSec client at the receiving host. The receiving host decrypts the payload of the packet and delivers it to the application. One of the key advantages of Transport mode is that it has a lower overhead than Tunnel mode, as only the payload of the IP packet is encrypted. However, it also provides a lower level of security, as the IP header is not encrypted and can be intercepted by external observers. Thus, understanding that transport mode offers more speed at the cost of lower security is important when deciding on a method of protection.

Key Exchange Protocols: IKE and ISAKMP

Key exchange protocols are essential for establishing secure IPSec connections. These protocols negotiate security parameters and exchange cryptographic keys between the communicating parties. The two most common key exchange protocols used with IPSec are Internet Key Exchange (IKE) and Internet Security Association and Key Management Protocol (ISAKMP).

Internet Key Exchange (IKE)

Internet Key Exchange (IKE) is a widely used key exchange protocol that automates the process of establishing and maintaining IPSec security associations (SAs). IKE is responsible for negotiating the security parameters, such as the encryption algorithm and authentication method, and exchanging the cryptographic keys that will be used to encrypt and decrypt data. IKE operates in two phases: Phase 1 and Phase 2. In Phase 1, IKE establishes a secure channel between the two endpoints, which is used to protect the subsequent key exchange process. This is typically done using Diffie-Hellman key exchange, which allows the two endpoints to establish a shared secret key without actually transmitting the key over the network. In Phase 2, IKE negotiates the security parameters for the IPSec SAs and exchanges the cryptographic keys that will be used to encrypt and decrypt data. IKE supports various authentication methods, such as pre-shared keys, digital certificates, and Kerberos. The flexibility of authentication methods makes IKE highly adaptable. IKE is a complex protocol, but it provides a secure and automated way to establish and maintain IPSec connections. It is widely used in VPNs and other network security applications. Understanding the intricacies of IKE is critical for network administrators who are responsible for configuring and managing IPSec deployments. Proper configuration of IKE is essential for ensuring the security and reliability of IPSec connections. The efficiency and security provided by IKE are instrumental to the effective use of IPSec.

Internet Security Association and Key Management Protocol (ISAKMP)

Internet Security Association and Key Management Protocol (ISAKMP) provides a framework for authentication and key exchange, but it does not define the specific key exchange algorithms. ISAKMP is often used in conjunction with IKE, which provides the specific key exchange algorithms. ISAKMP defines the procedures for negotiating, establishing, modifying, and deleting security associations (SAs). An SA is a set of security parameters that define how IPSec will protect data between two endpoints. ISAKMP uses a series of messages to negotiate the security parameters and exchange cryptographic keys. The messages are protected using cryptographic algorithms, such as encryption and authentication, to ensure the security and integrity of the key exchange process. ISAKMP supports various authentication methods, such as pre-shared keys, digital certificates, and Kerberos. ISAKMP is a foundational protocol for IPSec, providing a framework for establishing and maintaining secure connections. While it does not define the specific key exchange algorithms, it provides a flexible and extensible architecture that can be used with various key exchange protocols, such as IKE. The modular architecture of ISAKMP allows it to be used with a wide range of security protocols and technologies. It is an essential component of IPSec and plays a crucial role in ensuring the security and reliability of network communications.

Benefits of Implementing IPSec

Implementing IPSec provides numerous benefits for organizations seeking to enhance their network security. These benefits include:

Data Confidentiality: IPSec encrypts data packets, protecting them from eavesdropping and unauthorized access.
Data Integrity: IPSec ensures that data packets have not been tampered with during transit, preventing data corruption and manipulation.
Authentication: IPSec verifies the identity of the sender, preventing spoofing and other forms of identity theft.
Secure VPN Connections: IPSec is commonly used to create secure VPN connections, protecting data transmitted between remote users and corporate networks.
Compatibility: IPSec is a widely supported standard and is compatible with various operating systems and network devices.
Flexibility: IPSec can be implemented in various network environments and adapted to specific security requirements.
Enhanced Security: By implementing IPSec, organizations can significantly enhance their overall network security posture and protect their sensitive data from cyber threats.
Remote Access Security: As employees work remotely, IPSec ensures that their connections to the corporate network are secure.

The cumulative benefits of IPSec make it an essential tool for any organization concerned about network security. Its ability to provide confidentiality, integrity, and authentication for IP communications makes it a powerful defense against a wide range of cyber threats. By encrypting data packets, IPSec prevents unauthorized parties from accessing sensitive information. This is especially important for organizations that handle confidential data, such as financial records, medical information, or trade secrets. IPSec also ensures that data packets have not been tampered with during transit. This prevents data corruption and manipulation, ensuring that the data received is the same as the data sent. IPSec verifies the identity of the sender, preventing spoofing and other forms of identity theft. This is important for preventing unauthorized access to network resources and for ensuring that communications are coming from legitimate sources. IPSec is commonly used to create secure VPN connections, protecting data transmitted between remote users and corporate networks. This allows employees to work remotely without compromising the security of the corporate network. IPSec is a widely supported standard and is compatible with various operating systems and network devices. This makes it easy to implement and integrate into existing network infrastructures. IPSec can be implemented in various network environments and adapted to specific security requirements. This allows organizations to tailor IPSec to their specific needs and to address their unique security challenges. By implementing IPSec, organizations can significantly enhance their overall network security posture and protect their sensitive data from cyber threats. This can help to prevent data breaches, reduce the risk of financial losses, and protect the organization’s reputation. Overall, the benefits of IPSec make it a valuable investment for any organization that is serious about network security. By implementing IPSec, organizations can protect their sensitive data, prevent unauthorized access, and enhance their overall security posture.

Conclusion

In conclusion, IPSec is a critical suite of protocols for securing IP communications. Its ability to provide data confidentiality, integrity, and authentication makes it an essential component of modern network security. By understanding the architecture, modes of operation, and key exchange protocols of IPSec, organizations can effectively deploy and manage IPSec to protect their sensitive data from cyber threats. As the threat landscape continues to evolve, the importance of IPSec in maintaining secure and reliable network connections will only continue to grow.
