Nebelkammer: Unveiling the Secrets of Particle Physics with a Cloud of Vapor

The Nebelkammer, or cloud chamber, stands as a testament to human ingenuity in the realm of physics. Conceived and developed in the early 20th century, this remarkable device allows us to visualize the invisible: the paths of ionizing radiation and subatomic particles. Before the advent of more sophisticated detectors, the Nebelkammer was an indispensable tool for particle physicists, providing invaluable insights into the fundamental building blocks of our universe. Its simplicity and elegance belie the profound discoveries it has facilitated, shaping our understanding of radioactivity, cosmic rays, and particle interactions.

History and Development of the Nebelkammer

The invention of the Nebelkammer is credited to Charles Thomson Rees Wilson, a Scottish physicist. Wilson’s initial interest lay in atmospheric phenomena, particularly the formation of clouds. He sought to recreate these processes in a controlled laboratory setting. In 1895, while working at the Cavendish Laboratory in Cambridge, he began experimenting with a sealed container filled with moist air. By rapidly expanding the volume of the container, Wilson induced a sudden cooling, causing the air to become supersaturated with water vapor. He observed that droplets of water would condense on dust particles present in the air, forming a miniature cloud.

However, Wilson soon discovered something far more intriguing. When he introduced ionizing radiation, such as X-rays or radiation from radioactive materials, into the chamber, he noticed that droplets would also condense along distinct tracks, even in the absence of dust. He correctly deduced that these tracks were formed by ions created as the radiation passed through the air. The ions acted as condensation nuclei, triggering the formation of water droplets along the path of the radiation. This accidental discovery marked the birth of the first Nebelkammer, a device capable of making the invisible visible.

Wilson spent years refining his apparatus, optimizing its design and performance. He experimented with different gases, pressures, and expansion techniques. He also developed methods for photographing the tracks formed in the chamber, capturing permanent records of particle interactions. His pioneering work earned him the Nobel Prize in Physics in 1927, cementing the Nebelkammer’s place as a cornerstone of experimental particle physics. The Nebelkammer’s impact on scientific progress is undeniable, serving as a foundational tool that allowed scientists to observe and analyze the behavior of subatomic particles and ionizing radiation. The meticulous design and refinement of the device, coupled with Wilson’s insightful observations, have cemented its legacy as a pivotal instrument in the history of physics.

How a Nebelkammer Works: A Step-by-Step Guide

The principle behind the Nebelkammer is surprisingly straightforward. It relies on the phenomenon of supersaturation and the ionizing properties of radiation. Here’s a detailed breakdown of the process:

Creating Supersaturation: The heart of the Nebelkammer is a sealed chamber containing a gas, typically air, nitrogen, or argon, saturated with the vapor of a liquid, such as water or alcohol (usually isopropyl alcohol). The chamber is carefully maintained at a specific temperature and pressure to ensure that the vapor is on the verge of condensation. A rapid expansion of the chamber volume then causes the gas to cool rapidly. This rapid cooling reduces the gas’s ability to hold the vapor in solution, resulting in a supersaturated state. In this state, the vapor is eager to condense, but requires condensation nuclei to initiate the process.
Ionization: When ionizing radiation, such as alpha particles, beta particles, or gamma rays, enters the chamber, it interacts with the gas molecules. These interactions knock electrons out of the gas atoms, creating positive ions and free electrons. This process is called ionization. The number of ions produced depends on the type and energy of the radiation, as well as the density of the gas.

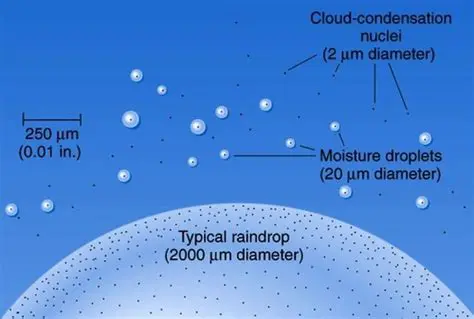

Track Formation: The ions created by the radiation act as condensation nuclei. Because the vapor is supersaturated, it readily condenses onto these ions, forming tiny droplets of liquid. These droplets cluster along the path of the radiation, creating a visible track. The density and thickness of the track depend on the amount of ionization produced by the particle. For example, alpha particles, which are heavily ionizing, create dense, thick tracks, while beta particles, which are less ionizing, create thinner, more wispy tracks.
Observation and Photography: The tracks formed in the Nebelkammer are typically illuminated with a bright light source. This makes them visible to the naked eye or to a camera. The tracks can be photographed or recorded on video, providing a permanent record of the particle interactions. The images can then be analyzed to determine the properties of the particles, such as their charge, momentum, and energy. By analyzing the patterns and characteristics of these tracks, scientists can glean invaluable information about the nature of the particles and the forces that govern their interactions. This analytical process is crucial for understanding the fundamental constituents of matter and the laws that dictate their behavior.
Magnetic Field (Optional): Some Nebelkammer setups incorporate a magnetic field. When charged particles move through a magnetic field, they experience a force that causes them to curve. The amount of curvature depends on the particle’s charge, velocity, and the strength of the magnetic field. By measuring the curvature of the tracks, scientists can determine the charge-to-mass ratio of the particles. This information can be used to identify the particles and study their properties in greater detail. The incorporation of a magnetic field enhances the analytical capabilities of the Nebelkammer, allowing for more precise measurements and deeper insights into the nature of subatomic particles.

Types of Nebelkammern: Diffusion and Expansion Chambers

While the basic principle remains the same, there are two main types of Nebelkammern: diffusion chambers and expansion chambers. Each type has its own advantages and disadvantages.

Diffusion Chamber: In a diffusion chamber, a temperature gradient is maintained across the chamber. The top of the chamber is kept warm, while the bottom is kept cold. This creates a region of supersaturated vapor near the bottom of the chamber. Ionizing radiation entering the chamber creates tracks in this supersaturated region. Diffusion chambers offer the advantage of continuous operation, as the supersaturation is constantly maintained by the temperature gradient. However, they typically have a limited sensitive volume and the tracks can be less sharp than those in expansion chambers.
Expansion Chamber: An expansion chamber, like the one originally developed by Wilson, relies on a mechanical expansion to create supersaturation. A piston or diaphragm is used to rapidly increase the volume of the chamber, causing the gas to cool and become supersaturated. Expansion chambers produce sharp, well-defined tracks, but they operate in a pulsed mode. After each expansion, the chamber must be reset before another event can be observed. While expansion chambers offer superior track quality, their pulsed operation limits their ability to observe rare events continuously. The choice between a diffusion chamber and an expansion chamber depends on the specific experimental requirements and the type of particles being studied.

Significance and Applications of the Nebelkammer

The Nebelkammer played a pivotal role in the early development of particle physics. It allowed scientists to:

Discover New Particles: The Nebelkammer was instrumental in the discovery of several new subatomic particles, including the positron (the antimatter counterpart of the electron) by Carl Anderson in 1932 and the muon (a heavier cousin of the electron) by Seth Neddermeyer and Carl Anderson in 1936. These discoveries revolutionized our understanding of the fundamental constituents of matter and paved the way for the development of the Standard Model of particle physics.
Study Cosmic Rays: Cosmic rays are high-energy particles that originate from outside the Earth’s atmosphere. The Nebelkammer was used extensively to study the composition and properties of cosmic rays. By observing the tracks of cosmic ray particles in the chamber, scientists were able to identify different types of particles and measure their energies. This research provided valuable insights into the origins and propagation of cosmic rays.
Investigate Radioactive Decay: The Nebelkammer provided a direct visual representation of radioactive decay processes. By observing the tracks of alpha particles, beta particles, and gamma rays emitted by radioactive materials, scientists were able to study the mechanisms of radioactive decay and determine the properties of radioactive isotopes. This research was crucial for understanding nuclear physics and developing applications of radioactive materials in medicine and industry.
Teach Particle Physics: Even today, the Nebelkammer remains a valuable tool for education and outreach. Its ability to visualize the invisible world of particles makes it an engaging and accessible way to introduce students and the public to the wonders of particle physics. Simple, DIY Nebelkammer kits are readily available, allowing anyone to build their own cloud chamber and observe the tracks of cosmic rays and other radiation sources. This hands-on experience fosters a deeper appreciation for the fundamental principles of physics and inspires the next generation of scientists.

Building Your Own Nebelkammer: A DIY Project

Building a Nebelkammer is a surprisingly accessible project, even for those with limited scientific experience. A simple DIY Nebelkammer can be constructed using readily available materials, offering a fascinating glimpse into the world of particle physics. Here’s a simplified guide:

Materials: You will need a clear plastic container (such as a fish tank or a plastic box), black felt, isopropyl alcohol (90% or higher), dry ice, a metal plate (such as an aluminum baking sheet), a bright light source (such as an LED flashlight), and a radioactive source (optional, but recommended for better results – a small piece of uranium glass or a thorium gas mantle will work).
Construction: Line the bottom of the plastic container with black felt. This will provide a dark background for viewing the particle tracks. Saturate the felt with isopropyl alcohol. Place the metal plate on top of the plastic container, creating a lid. Place the dry ice on top of the metal plate. This will cool the chamber and create the necessary temperature gradient. Aim the bright light source into the chamber from the side. This will illuminate the particle tracks.
Operation: Wait for a few minutes for the chamber to cool down and the supersaturated vapor to form. If you have a radioactive source, place it inside the chamber. Observe the chamber carefully. You should see wispy tracks forming as ionizing radiation passes through the vapor. The tracks may be faint at first, but they will become more visible as the chamber cools further. Experiment with different lighting angles and radioactive sources to optimize the results. The Nebelkammer offers a tangible and educational experience, allowing individuals to witness firsthand the fundamental processes of particle physics.

The Nebelkammer, despite its age, continues to inspire awe and wonder. It serves as a powerful reminder of the ingenuity of scientists and the beauty of the natural world. Its ability to make the invisible visible has revolutionized our understanding of particle physics and continues to inspire new discoveries. From its humble beginnings in a Cambridge laboratory to its widespread use in research and education, the Nebelkammer remains a testament to the power of scientific curiosity and the enduring quest to unravel the mysteries of the universe. By making fundamental physics concepts accessible and engaging, the Nebelkammer has played a vital role in shaping the scientific landscape and fostering a deeper appreciation for the intricacies of the cosmos. Its legacy extends far beyond its historical significance, serving as a continuous source of inspiration for future generations of scientists and educators.
