Understanding RS232 to TTL Conversion: Bridging Communication Gaps

In the world of serial communication, understanding the nuances of different voltage levels and communication protocols is crucial. A common scenario involves interfacing devices that use different voltage standards, such as RS232 and TTL (Transistor-Transistor Logic). This article delves into the specifics of RS232 to TTL conversion, exploring its significance, applications, and the technical aspects involved in bridging these communication gaps.

What is RS232?

RS232, or Recommended Standard 232, is a standard for serial communication that defines the electrical signaling characteristics, connector types, and signal functions. Originally developed for connecting data terminal equipment (DTE) such as computer terminals to data communication equipment (DCE) such as modems, RS232 has become a ubiquitous interface in various industrial, commercial, and hobbyist applications. The RS232 standard utilizes voltage levels that are significantly different from those used in modern digital logic circuits. Typically, an RS232 signal represents a logic ‘1’ with a voltage between -3V and -15V, and a logic ‘0’ with a voltage between +3V and +15V. This voltage range, while robust against noise, is incompatible with the low-voltage logic used in microcontrollers and other digital devices.

The long history of RS232 has cemented its place in legacy systems. From industrial control systems to scientific instrumentation, RS232 remains a reliable method for point-to-point data transfer. While newer communication protocols like USB and Ethernet offer higher speeds and more advanced features, RS232’s simplicity and widespread availability ensure its continued relevance. Understanding the characteristics of RS232, including its voltage levels, data encoding, and handshaking protocols, is essential for engineers and technicians working with legacy equipment or designing interfaces between older and newer systems. Furthermore, the voltage levels used in RS232 provide a level of noise immunity that can be advantageous in electrically noisy environments. This noise immunity, combined with its established presence, makes RS232 a practical choice in specific applications where reliability is paramount. Moreover, RS232’s asynchronous nature and ease of implementation contribute to its continued use in embedded systems and other low-complexity applications. Whether it’s configuring network devices or interacting with specialized hardware, RS232 remains a valuable tool in the arsenal of communication protocols.

What is TTL?

TTL, or Transistor-Transistor Logic, is a digital logic family widely used in integrated circuits. TTL circuits operate with a 5V power supply, and the logic levels are defined as follows: a logic ‘1’ is typically represented by a voltage between 2.0V and 5.0V, while a logic ‘0’ is represented by a voltage between 0.0V and 0.8V. These voltage levels are directly compatible with many microcontrollers, microprocessors, and other digital components. TTL’s simplicity and speed made it a dominant technology for building digital circuits for decades. Its prevalence led to TTL voltage levels becoming a de facto standard for many digital interfaces.

TTL circuits are characterized by their speed, low cost, and ease of use. While newer logic families like CMOS (Complementary Metal-Oxide-Semiconductor) offer lower power consumption and higher integration densities, TTL remains relevant in applications where speed and simplicity are more critical. TTL’s standardized voltage levels facilitate easy interfacing between different digital components. Many microcontrollers and peripherals are designed to operate with TTL-compatible inputs and outputs. This compatibility simplifies system design and reduces the need for complex level-shifting circuitry in many cases. Furthermore, TTL’s relatively high output drive capability allows it to directly drive multiple loads without significant signal degradation. This feature is beneficial in applications where signals need to be distributed to multiple devices. Although TTL is less energy-efficient than CMOS, its speed and cost-effectiveness make it a viable option in a range of applications. Moreover, the wealth of available TTL components and design resources contributes to its continued use in hobbyist projects, educational settings, and legacy systems. Whether it’s building simple logic gates or interfacing with microcontrollers, TTL remains a valuable building block for digital electronics.

Why Convert RS232 to TTL?

The primary reason for converting RS232 to TTL is the voltage level incompatibility between RS232 devices and TTL-based digital systems. Directly connecting an RS232 port to a TTL input can damage the TTL circuit due to the high voltages present in the RS232 signal. Conversely, a TTL output cannot reliably drive an RS232 input because the voltage levels are too low. Therefore, a level converter is required to translate the RS232 voltage levels to TTL voltage levels, and vice versa.

Consider a scenario where you need to interface a legacy RS232 device, such as an old modem or serial printer, with a modern microcontroller. The microcontroller, operating on TTL voltage levels, cannot directly communicate with the RS232 device. In this case, an RS232 to TTL converter acts as an intermediary, translating the signals between the two devices. This allows the microcontroller to send and receive data from the RS232 device without risking damage or unreliable communication. Another common application is in embedded systems where RS232 is used for debugging or configuration purposes. Instead of using a full-fledged RS232 port, the microcontroller can communicate with a computer via a USB-to-serial adapter that emulates an RS232 port. The microcontroller’s TTL-level UART (Universal Asynchronous Receiver/Transmitter) then needs to be converted to RS232 levels for communication with the adapter. In addition to voltage level translation, an RS232 to TTL converter may also provide additional features such as signal buffering, noise filtering, and isolation. These features can improve the reliability and robustness of the communication link, especially in electrically noisy environments. By using an RS232 to TTL converter, engineers and hobbyists can seamlessly integrate RS232 devices into modern digital systems, extending the lifespan of legacy equipment and enabling new possibilities for data communication.

How RS232 to TTL Conversion Works

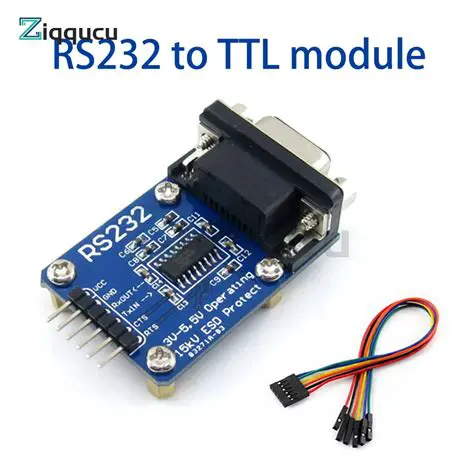

The conversion from RS232 to TTL typically involves a specialized integrated circuit (IC) known as a level converter or transceiver. These ICs contain the necessary circuitry to translate the RS232 voltage levels to TTL voltage levels, and vice versa. The most commonly used IC for this purpose is the MAX232 or its equivalent. The MAX232 contains charge pump capacitors that generate the positive and negative voltages required for RS232 signaling from a single 5V power supply. It also includes two RS232 drivers and two RS232 receivers, allowing for simultaneous bidirectional communication.

The conversion process can be broken down into two stages: RS232 to TTL conversion and TTL to RS232 conversion. In the RS232 to TTL conversion stage, the RS232 signal is fed into an RS232 receiver within the level converter IC. The receiver detects the RS232 voltage levels and converts them to TTL voltage levels. For example, an RS232 voltage between +3V and +15V (representing a logic ‘0’) is converted to a TTL voltage between 0.0V and 0.8V, while an RS232 voltage between -3V and -15V (representing a logic ‘1’) is converted to a TTL voltage between 2.0V and 5.0V. In the TTL to RS232 conversion stage, the TTL signal is fed into an RS232 driver within the level converter IC. The driver takes the TTL voltage levels and converts them to RS232 voltage levels. For example, a TTL voltage between 0.0V and 0.8V (representing a logic ‘0’) is converted to an RS232 voltage between +3V and +15V, while a TTL voltage between 2.0V and 5.0V (representing a logic ‘1’) is converted to an RS232 voltage between -3V and -15V. The charge pump capacitors within the MAX232 IC are essential for generating the positive and negative voltages required for RS232 signaling. These capacitors store and release charge to create the necessary voltage levels, allowing the IC to operate from a single 5V power supply. By using a level converter IC like the MAX232, engineers can easily and reliably convert between RS232 and TTL voltage levels, enabling seamless communication between devices with different voltage standards.

Hardware Considerations for RS232 to TTL Conversion

When implementing RS232 to TTL conversion, several hardware considerations must be taken into account to ensure reliable communication. These considerations include selecting the appropriate level converter IC, choosing the correct capacitor values, and properly connecting the power supply and ground. The MAX232 is a popular choice for RS232 to TTL conversion due to its simplicity and widespread availability. However, other level converter ICs are available with different features and specifications, such as higher data rates or lower power consumption. When selecting a level converter IC, it is important to consider the specific requirements of the application.

The capacitor values used in the charge pump circuit of the level converter IC are also critical. The datasheet for the IC will specify the recommended capacitor values based on the operating voltage and data rate. Using incorrect capacitor values can result in unreliable communication or even damage to the IC. It is important to use low-ESR (Equivalent Series Resistance) capacitors for optimal performance. Proper power supply and grounding are essential for any electronic circuit, and RS232 to TTL conversion is no exception. The power supply should be stable and within the specified voltage range of the level converter IC. The ground connection should be solid and free of noise. It is also important to minimize the length of the wires connecting the power supply and ground to the IC. In addition to these basic considerations, it may also be necessary to add additional components such as resistors or ferrite beads to improve the performance of the circuit. Resistors can be used to limit the current flowing into the IC, while ferrite beads can be used to filter out high-frequency noise. The specific components required will depend on the application and the environment in which the circuit is operating. By carefully considering these hardware considerations, engineers can ensure that their RS232 to TTL conversion circuits are reliable and perform as expected.

Software Considerations for RS232 to TTL Conversion

While the hardware implementation of RS232 to TTL conversion is crucial, software considerations also play a significant role in ensuring seamless communication. These considerations include configuring the serial port settings, handling data transmission and reception, and implementing error detection and correction mechanisms. The serial port settings, such as baud rate, data bits, parity, and stop bits, must be configured correctly on both the RS232 device and the TTL-based device. The baud rate determines the data transfer speed, while the data bits, parity, and stop bits define the format of the data being transmitted. Mismatched serial port settings can result in garbled data or communication errors.

The software must also handle the transmission and reception of data between the RS232 device and the TTL-based device. This typically involves using a UART (Universal Asynchronous Receiver/Transmitter) driver or library to send and receive data over the serial port. The UART driver or library will handle the low-level details of serial communication, such as framing the data, transmitting and receiving bits, and handling interrupts. It is important to choose a UART driver or library that is compatible with the microcontroller or operating system being used. In addition to data transmission and reception, the software should also implement error detection and correction mechanisms to ensure data integrity. Common error detection methods include parity checking, checksums, and cyclic redundancy checks (CRCs). If an error is detected, the software can either request retransmission of the data or attempt to correct the error using error correction codes. The choice of error detection and correction method will depend on the application and the level of data integrity required. Furthermore, the software should handle flow control to prevent data overrun. Flow control mechanisms, such as RTS/CTS (Request to Send/Clear to Send) or XON/XOFF, allow the receiving device to signal to the transmitting device when it is ready to receive more data. This prevents the transmitting device from sending data faster than the receiving device can process it, which can lead to data loss. By carefully considering these software considerations, developers can ensure that their RS232 to TTL communication systems are reliable, efficient, and error-free.

Applications of RS232 to TTL Conversion

RS232 to TTL conversion finds applications in a wide range of fields, including embedded systems, industrial automation, and legacy system integration. In embedded systems, it is often used to interface microcontrollers with RS232-based peripherals such as GPS modules, barcode scanners, and serial printers. Industrial automation systems rely on RS232 to TTL conversion for communication between PLCs (Programmable Logic Controllers), sensors, and other control devices. In legacy system integration, it allows modern computers and microcontrollers to communicate with older RS232-based equipment, extending the lifespan of these systems.

Consider a scenario where you are building a custom GPS tracking device using a microcontroller and a GPS module with an RS232 interface. The microcontroller operates on TTL voltage levels, while the GPS module uses RS232 voltage levels. An RS232 to TTL converter is required to translate the signals between the microcontroller and the GPS module, allowing the microcontroller to receive GPS data and track the device’s location. Another common application is in industrial control systems where PLCs are used to control various machines and processes. Many older PLCs use RS232 for communication, while newer sensors and actuators may use TTL-compatible interfaces. An RS232 to TTL converter allows the PLC to communicate with these newer devices, enabling more advanced control and monitoring capabilities. Furthermore, RS232 to TTL conversion is essential for debugging and programming embedded systems. Many microcontrollers have a built-in UART that can be used for serial communication. By connecting an RS232 to TTL converter to the UART, developers can connect the microcontroller to a computer and use debugging tools to monitor the microcontroller’s operation and program its memory. In addition to these specific examples, RS232 to TTL conversion is also used in a variety of other applications, such as data acquisition systems, scientific instruments, and telecommunications equipment. Its versatility and ease of implementation make it a valuable tool for engineers and hobbyists working with serial communication.

Conclusion

RS232 to TTL conversion is a fundamental technique for bridging the gap between different voltage levels in serial communication. By understanding the principles of RS232 and TTL, as well as the hardware and software considerations involved in the conversion process, engineers and hobbyists can seamlessly integrate devices with different voltage standards, enabling a wide range of applications and extending the lifespan of legacy systems. The use of level converters like the MAX232 simplifies the process, making it accessible to both experienced professionals and beginners alike. Whether you’re working on an embedded system, an industrial automation project, or simply trying to connect an old device to a modern computer, RS232 to TTL conversion is a valuable skill to have in your toolkit.
