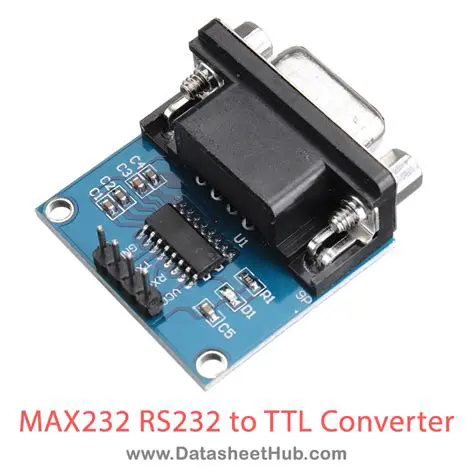

Understanding RS232 to TTL Converters: Bridging Communication Gaps

Oct 30, 2025 by recoveryshake.com 111 views

Understanding RS232 to TTL Converters: Bridging Communication Gaps

In the world of electronics and embedded systems, reliable communication between devices is paramount. However, devices often operate using different voltage levels and communication protocols. This is where the RS232 to TTL converter steps in, acting as a vital bridge between systems. These converters play a crucial role in facilitating seamless data exchange between devices utilizing the RS232 standard and those employing TTL (Transistor-Transistor Logic) voltage levels. Understanding the functionality, applications, and significance of these converters is essential for anyone working in electronics, robotics, automation, and various other technical fields. The importance of RS232 to TTL conversion is rooted in the ubiquitous nature of both communication standards. RS232, with its long history and robust performance over moderate distances, is frequently used for communication between computers and peripherals. TTL, on the other hand, is a common voltage level for microcontrollers and other digital logic circuits. The voltage incompatibility between these two systems necessitates the use of a converter to ensure safe and reliable data transmission. Without such a converter, directly connecting an RS232 device to a TTL device could potentially damage the TTL device due to the higher voltage levels of the RS232 signal. This article will delve into the intricacies of RS232 to TTL converters, exploring their working principles, applications, advantages, and considerations for choosing the right converter for a specific application. Whether you are a seasoned engineer or a hobbyist exploring the world of electronics, understanding the RS232 to TTL converter is a fundamental skill that will undoubtedly prove valuable in your projects. From interfacing a microcontroller with a computer to debugging embedded systems, the versatility and importance of these converters cannot be overstated.

What is RS232?

The RS232 standard, formally known as Recommended Standard 232, is a serial communication interface widely used for connecting computers and peripheral devices. It defines the electrical signaling characteristics, data transmission protocols, and mechanical interface for serial communication. Historically, RS232 was a standard interface for connecting modems, printers, and other peripherals to computers. Although newer communication technologies like USB and Ethernet have become more prevalent, RS232 remains relevant in many industrial and legacy systems. RS232’s robustness and simplicity make it a suitable choice for applications where long-distance communication or interfacing with older equipment is required. One of the key features of RS232 is its use of voltage levels that are significantly different from those used in modern digital logic circuits. RS232 typically uses voltage levels of +3 to +15 volts for a logic low (space) and -3 to -15 volts for a logic high (mark). This voltage swing provides better noise immunity compared to TTL or CMOS logic levels. However, this voltage difference also means that RS232 signals cannot be directly interfaced with TTL or CMOS devices without a level converter. The RS232 protocol defines various parameters for serial communication, including baud rate, data bits, parity bits, and stop bits. The baud rate specifies the rate at which data is transmitted, typically measured in bits per second (bps). Common baud rates include 9600, 19200, 38400, and 115200 bps. The data bits specify the number of bits used to represent each character, typically 7 or 8 bits. Parity bits are used for error detection, and stop bits mark the end of each character. These parameters must be configured correctly on both the transmitting and receiving devices to ensure reliable communication. In addition to its electrical and protocol specifications, RS232 also defines the physical connector used for the interface. The most common connector is the DB9 connector, which has nine pins. However, some devices may use a DB25 connector, which has 25 pins. The pins on the connector are assigned specific functions, such as transmit data (TXD), receive data (RXD), and ground (GND). Understanding the RS232 standard is crucial for anyone working with serial communication, especially when interfacing with legacy devices or designing custom communication systems. While newer technologies offer higher speeds and greater flexibility, RS232 remains a reliable and widely used interface in various applications.

What is TTL?

TTL, or Transistor-Transistor Logic, is a digital logic family built from bipolar junction transistors (BJTs). It was one of the most widely used logic families in the 20th century and is still found in some applications today. TTL is characterized by its use of transistors to perform logic operations, and it typically operates at a voltage level of 5 volts. The TTL logic family is known for its speed, low cost, and ease of use. It was a popular choice for building digital circuits in computers, control systems, and other electronic devices. However, TTL has largely been replaced by CMOS (Complementary Metal-Oxide-Semiconductor) logic in many applications due to CMOS’s lower power consumption and higher integration density. The voltage levels used in TTL circuits are typically 0 volts for a logic low and 5 volts for a logic high. This makes TTL signals incompatible with RS232 signals, which use voltage levels of +3 to +15 volts for a logic low and -3 to -15 volts for a logic high. Directly connecting an RS232 device to a TTL device can damage the TTL device due to the higher voltage levels of the RS232 signal. Therefore, a level converter is required to interface between RS232 and TTL devices. TTL circuits are often used in microcontrollers, microprocessors, and other digital logic circuits. These devices require a stable and reliable voltage supply to operate correctly. TTL circuits are also sensitive to noise and voltage fluctuations, so it is important to use proper grounding and shielding techniques when designing TTL circuits. In addition to its use in digital logic circuits, TTL is also used in some analog circuits. For example, TTL comparators can be used to compare two analog voltages and output a digital signal indicating which voltage is higher. TTL timers can be used to generate precise time delays, and TTL oscillators can be used to generate stable clock signals. While TTL is not as widely used as it once was, it is still a valuable technology to understand. Many older electronic devices still use TTL circuits, and TTL is still used in some niche applications where its speed and low cost are advantageous. Furthermore, understanding TTL logic provides a solid foundation for learning about other digital logic families, such as CMOS and ECL.

Why Use an RS232 to TTL Converter?

The primary reason to use an RS232 to TTL converter is to bridge the voltage incompatibility between RS232 devices and TTL devices. As mentioned earlier, RS232 uses voltage levels of +3 to +15 volts for a logic low and -3 to -15 volts for a logic high, while TTL uses voltage levels of 0 volts for a logic low and 5 volts for a logic high. Directly connecting an RS232 device to a TTL device can damage the TTL device due to the higher voltage levels of the RS232 signal. An RS232 to TTL converter solves this problem by converting the RS232 voltage levels to TTL voltage levels, allowing safe and reliable communication between the two types of devices. In addition to voltage level conversion, RS232 to TTL converters also provide isolation between the RS232 and TTL circuits. This isolation helps to protect the TTL circuit from noise and voltage fluctuations on the RS232 line. Isolation can be particularly important in industrial environments where there may be significant electrical noise. Another important benefit of using an RS232 to TTL converter is that it simplifies the process of interfacing RS232 devices with microcontrollers and other embedded systems. Microcontrollers typically use TTL voltage levels, so an RS232 to TTL converter is required to connect them to RS232 devices such as computers, modems, and GPS receivers. Without a converter, you would need to design a custom interface circuit to convert the voltage levels, which can be time-consuming and complex. RS232 to TTL converters are available in a variety of forms, including integrated circuits, modules, and cables. Integrated circuits are typically used in embedded systems where space is limited. Modules are self-contained converters that can be easily connected to RS232 and TTL devices. Cables are used to connect RS232 devices to TTL devices over longer distances. When choosing an RS232 to TTL converter, it is important to consider the following factors: voltage levels, baud rate, isolation, and form factor. The converter must be able to handle the voltage levels used by the RS232 and TTL devices. The baud rate must be high enough to support the desired data transfer rate. Isolation is important in noisy environments. The form factor should be appropriate for the application. In summary, RS232 to TTL converters are essential for interfacing RS232 devices with TTL devices. They provide voltage level conversion, isolation, and simplification of the interface process. When choosing a converter, it is important to consider the voltage levels, baud rate, isolation, and form factor.

How Does an RS232 to TTL Converter Work?

The core function of an RS232 to TTL converter lies in its ability to translate the voltage levels between the RS232 and TTL standards. This conversion is typically achieved using electronic components like level shifters and voltage regulators. The converter receives the RS232 signal, which can range from -15V to +15V, and transforms it into a TTL-compatible signal, typically ranging from 0V to 5V. This process involves several stages to ensure a clean and reliable conversion. The input stage of the RS232 to TTL converter often includes a protection circuit to prevent damage from overvoltage or electrostatic discharge. This is crucial because RS232 ports can be exposed to harsh electrical environments. The signal then passes through a level shifter, which is responsible for translating the high RS232 voltage levels to the lower TTL voltage levels. Level shifters typically use transistors or specialized integrated circuits to perform this translation. The output stage of the converter typically includes a driver circuit that amplifies the TTL signal to ensure it can drive the intended load. This is important because TTL circuits can have limited drive capability. The converter may also include filtering circuitry to remove noise and ensure a clean TTL signal. In addition to voltage level conversion, RS232 to TTL converters often provide signal inversion. RS232 signals are typically inverted, meaning that a logic high is represented by a negative voltage and a logic low is represented by a positive voltage. TTL signals, on the other hand, are typically non-inverted, meaning that a logic high is represented by a positive voltage and a logic low is represented by 0V. Therefore, the converter must invert the RS232 signal to produce a correct TTL signal. The specific components and circuitry used in an RS232 to TTL converter can vary depending on the design and application. Some converters use discrete components, while others use integrated circuits. Integrated circuits offer advantages such as smaller size, lower power consumption, and higher reliability. However, discrete component designs can be more flexible and easier to customize. It’s also important to note that some RS232 to TTL converters are bidirectional, meaning they can convert signals in both directions. This is useful in applications where data needs to be transmitted and received between RS232 and TTL devices. In summary, the RS232 to TTL converter works by receiving the RS232 signal, protecting against overvoltage, shifting the voltage levels, inverting the signal, and driving the TTL output. This process ensures a safe and reliable communication bridge between RS232 and TTL devices.

Applications of RS232 to TTL Converters

The versatility of RS232 to TTL converters makes them indispensable in a wide array of applications. Their ability to bridge the gap between different voltage levels and communication protocols allows for seamless integration of devices in various industries. One common application is in embedded systems. Microcontrollers, which are the brains of many embedded systems, typically operate at TTL voltage levels. When these microcontrollers need to communicate with devices using RS232, such as computers or GPS modules, an RS232 to TTL converter becomes essential. This allows the microcontroller to send and receive data reliably without the risk of damaging the TTL circuitry. In industrial automation, RS232 to TTL converters are used to interface programmable logic controllers (PLCs) with various sensors and actuators. PLCs often use RS232 for communication, while sensors and actuators may operate at TTL voltage levels. The converter ensures that the PLC can communicate with these devices without any voltage incompatibility issues. Another significant application is in robotics. Robots often use microcontrollers or single-board computers to control their movements and interactions with the environment. These controllers need to communicate with various sensors, motors, and other peripherals, some of which may use RS232. An RS232 to TTL converter allows the robot’s controller to interface with these devices seamlessly. In the realm of telecommunications, RS232 to TTL converters are used to connect modems and other communication devices to computers and other digital systems. Modems typically use RS232 for communication, while computers use TTL or other digital logic levels. The converter ensures that the modem can communicate with the computer without any voltage incompatibility issues. RS232 to TTL converters also find applications in data acquisition systems. These systems are used to collect data from various sensors and instruments. The data is then processed and analyzed by a computer or other digital system. An RS232 to TTL converter allows the data acquisition system to interface with sensors and instruments that use RS232 for communication. Furthermore, in debugging and testing, RS232 to TTL converters are invaluable tools. They allow engineers to connect a computer to a TTL-based circuit or system for debugging and testing purposes. This enables engineers to monitor the signals and data flowing through the system and identify any issues or errors. From simple hobbyist projects to complex industrial systems, RS232 to TTL converters play a critical role in enabling communication and data exchange between devices. Their versatility and reliability make them an essential component in many electronic systems.

Choosing the Right RS232 to TTL Converter

Selecting the appropriate RS232 to TTL converter for your specific application requires careful consideration of several factors. A mismatch in specifications can lead to unreliable communication or even damage to your equipment. One of the most crucial factors to consider is the voltage levels. Ensure that the converter is compatible with the voltage levels of both the RS232 and TTL devices you are connecting. RS232 voltage levels typically range from -15V to +15V, while TTL voltage levels are typically 0V to 5V. The converter should be able to handle these voltage levels without any issues. Another important factor is the baud rate. The baud rate is the rate at which data is transmitted over the serial connection, typically measured in bits per second (bps). Ensure that the converter supports the baud rate required by your application. If the baud rate is too low, you may experience data loss or slow communication. Isolation is another critical consideration, especially in noisy environments. An isolated RS232 to TTL converter provides electrical isolation between the RS232 and TTL circuits, protecting the TTL circuit from noise and voltage fluctuations on the RS232 line. This is particularly important in industrial environments where there may be significant electrical interference. The form factor of the converter is also important. RS232 to TTL converters are available in various forms, including integrated circuits, modules, and cables. Choose the form factor that is most appropriate for your application. Integrated circuits are typically used in embedded systems where space is limited. Modules are self-contained converters that can be easily connected to RS232 and TTL devices. Cables are used to connect RS232 devices to TTL devices over longer distances. Power consumption can also be a factor, especially in battery-powered applications. Choose a converter with low power consumption to maximize battery life. Some converters also have power-saving features that can further reduce power consumption. The operating temperature range should be considered, especially in harsh environments. Ensure that the converter can operate reliably within the temperature range of your application. Some converters are designed to operate in extreme temperatures, while others are more limited. Finally, consider the manufacturer and quality of the converter. Choose a converter from a reputable manufacturer to ensure that it is reliable and meets your specifications. Read reviews and compare prices to find the best converter for your needs. In summary, choosing the right RS232 to TTL converter requires careful consideration of voltage levels, baud rate, isolation, form factor, power consumption, operating temperature range, and manufacturer quality. By considering these factors, you can ensure that you select a converter that is appropriate for your application and provides reliable communication.

Conclusion

In conclusion, the RS232 to TTL converter stands as a vital component in the realm of electronics and embedded systems, effectively bridging the communication gap between devices operating on different voltage levels. Understanding its function, applications, and the key considerations for choosing the right converter is essential for anyone working with serial communication. From enabling seamless communication between microcontrollers and computers to facilitating data exchange in industrial automation and robotics, the RS232 to TTL converter proves its worth in a wide range of scenarios. Its ability to translate voltage levels, provide isolation, and simplify the interfacing process makes it an indispensable tool for engineers, hobbyists, and anyone involved in electronics projects. By carefully considering factors such as voltage levels, baud rate, isolation requirements, form factor, and operating environment, you can select the RS232 to TTL converter that best suits your needs and ensures reliable and efficient communication between your devices. As technology continues to evolve, the importance of effective communication between diverse systems remains paramount. The RS232 to TTL converter will continue to play a crucial role in enabling this communication, ensuring that devices can seamlessly interact and exchange data, regardless of their underlying voltage levels or communication protocols. The knowledge and understanding of this essential component will undoubtedly empower you to tackle a wide range of electronic projects and build robust and reliable communication systems.
