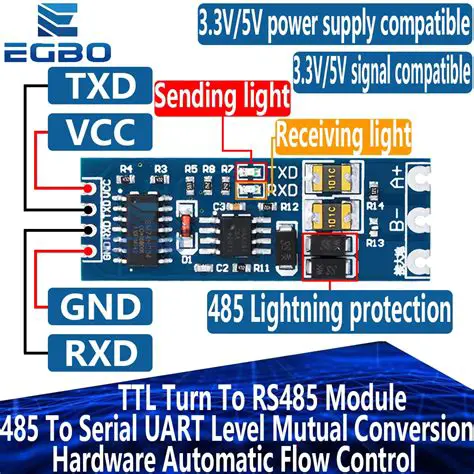

Understanding RS485 to TTL Conversion: Bridging Communication Gaps

In the realm of serial communication, RS485 and TTL (Transistor-Transistor Logic) stand as distinct yet frequently intertwined technologies. The need to convert between these two standards arises in numerous applications, necessitating a clear understanding of RS485 to TTL conversion. This article delves into the core principles, methods, applications, and advantages of this vital conversion process, aiming to provide a comprehensive guide for engineers, hobbyists, and anyone involved in serial data transmission.

What is RS485 and Why is Conversion Needed?

RS485, or Recommended Standard 485, is a serial communication standard known for its robustness, ability to transmit data over long distances, and support for multiple devices on a single bus. Unlike single-ended serial interfaces like RS232, RS485 uses differential signaling, which involves transmitting data as the voltage difference between two wires. This differential approach provides significant noise immunity, making RS485 suitable for industrial environments with high levels of electrical interference. Furthermore, RS485’s multi-drop capability allows for creating networks of devices communicating with each other, where a single master device can communicate with multiple slave devices. The standard also features common mode voltage range, fault tolerance (the ability to withstand short circuits), and controlled impedance. Some of the common applications of RS485 include industrial automation, motor control, building automation, and data acquisition systems. Its balanced line characteristics make it suitable for noisy environments. The typical cable used is a shielded twisted pair cable of 120 ohms, which reduces electromagnetic interference.

The need for RS485 to TTL conversion stems from the fact that many microcontrollers, embedded systems, and other digital devices operate using TTL logic levels. TTL, characterized by voltage levels typically around 0V for logic low and 5V (or 3.3V) for logic high, is a common interface for digital circuits. These devices cannot directly communicate with RS485 devices due to the differences in voltage levels and signaling methods. RS485 uses differential voltage levels that typically range from -7V to +12V, while TTL uses single-ended signals at 0V and 5V. Therefore, to enable communication between TTL-based devices and RS485 networks, a conversion process is essential. An RS485 to TTL converter acts as a bridge, translating the differential signals of RS485 into the single-ended signals compatible with TTL and vice versa. This conversion process allows for seamless integration of RS485 devices into existing TTL-based systems and enables the use of microcontrollers and other digital devices in RS485 networks. Without this conversion, communication between these disparate systems would be impossible, limiting the interoperability of various devices in industrial and commercial applications.

Understanding TTL (Transistor-Transistor Logic)

Before diving into the conversion process, it’s important to understand TTL itself. TTL, short for Transistor-Transistor Logic, is a digital logic family built from bipolar junction transistors (BJTs). TTL circuits use BJTs to perform logic operations such as AND, OR, NAND, NOR, XOR, and NOT. The main characteristics of TTL logic are its fast switching speeds and relatively high power consumption compared to newer logic families like CMOS (Complementary Metal-Oxide-Semiconductor). TTL logic levels are defined by specific voltage ranges that represent logical HIGH (1) and logical LOW (0) states. Typically, for standard TTL, a voltage between 2.0V and 5.0V is considered a HIGH, while a voltage between 0.0V and 0.8V is considered a LOW. However, these voltage levels can vary slightly depending on the specific TTL variant. Over the years, several variations of TTL have been developed, including standard TTL, Schottky TTL, Low-Power Schottky TTL (LS-TTL), and Advanced Low-Power Schottky TTL (ALS-TTL). Each variant offers different trade-offs between speed, power consumption, and noise immunity. TTL circuits are widely used in digital systems, microprocessors, memory devices, and various other electronic applications due to their simplicity and versatility. Despite the emergence of CMOS as the dominant logic family, TTL continues to be used in niche applications where its unique characteristics are advantageous.

TTL plays a crucial role as a standard for interfacing digital components. Many microcontrollers, FPGAs, and other integrated circuits use TTL logic levels for their input and output signals. This makes TTL a common ground for connecting different digital devices together. However, TTL’s limitations in terms of noise immunity and distance limitations necessitate the use of interfaces like RS485 when long-distance communication or reliable operation in noisy environments is required. This is where RS485 to TTL converters become essential for bridging the gap between TTL-based devices and RS485 networks. By converting RS485 signals to TTL-compatible signals and vice versa, these converters allow TTL devices to communicate effectively with RS485 devices, enabling seamless integration and interoperability between different parts of a system.

Methods of RS485 to TTL Conversion

Several methods can be employed for RS485 to TTL conversion, each with its own advantages and disadvantages. The most common approach involves using dedicated RS485 transceiver integrated circuits (ICs). These ICs are specifically designed to handle the conversion between RS485 differential signals and TTL single-ended signals. They typically incorporate both an RS485 driver, which converts TTL signals to RS485 signals for transmission, and an RS485 receiver, which converts RS485 signals to TTL signals for reception.

Using Dedicated RS485 Transceivers: Transceivers like the MAX485, SN75176, or equivalent provide a simple and effective solution. These chips handle the electrical translation between the two standards. Typically, these transceivers require a single 5V power supply and provide TTL-compatible input and output pins that can be directly connected to a microcontroller or other digital logic device. The transceiver includes a driver that converts TTL signals to RS485 differential signals for transmission and a receiver that converts RS485 differential signals to TTL signals for reception. These transceivers also include features like short-circuit protection and thermal shutdown to enhance reliability and prevent damage in harsh environments. The use of dedicated RS485 transceivers is the preferred method in most applications due to its simplicity, reliability, and availability of integrated features.
Discrete Components: While less common, it’s possible to build an RS485 to TTL converter using discrete components like operational amplifiers (op-amps) and transistors. This approach requires a deeper understanding of analog circuit design and can be more complex than using dedicated transceiver ICs. However, it may be useful in situations where cost is a primary concern or where specific design requirements cannot be met by off-the-shelf transceivers. The discrete component approach involves using op-amps to amplify and compare the differential RS485 signals to generate TTL-compatible signals. Transistors are used to switch the signals based on the output of the op-amps. This method requires careful selection of component values and circuit design to ensure proper signal levels and noise immunity.
Microcontroller with Integrated RS485: Some microcontrollers have built-in RS485 transceivers or the capability to implement RS485 functionality using software and external components. This approach can reduce the component count and simplify the overall design. However, it requires more software development effort to implement the RS485 communication protocol and may not be suitable for high-speed or demanding applications. The microcontroller typically includes a UART (Universal Asynchronous Receiver/Transmitter) module that can be configured to generate and receive RS485 signals. External components such as resistors and capacitors are used to provide the necessary biasing and termination for the RS485 bus. Software is used to control the UART module and implement the RS485 communication protocol, including error detection and correction.

Regardless of the method chosen, proper termination of the RS485 bus is crucial for reliable communication. Termination resistors, typically 120 ohms, should be placed at both ends of the bus to minimize signal reflections. Also, biasing resistors can be added to maintain a defined voltage level on the bus when no devices are transmitting. These resistors ensure that the bus remains in a known state and prevent noise from causing false triggering of the receivers.

Applications of RS485 to TTL Conversion

The applications of RS485 to TTL conversion are vast and diverse, spanning numerous industries and fields. Here are some notable examples:

Industrial Automation: In industrial environments, RS485 is commonly used to connect programmable logic controllers (PLCs), sensors, and actuators. Converting RS485 to TTL allows these devices to communicate with microcontrollers and other digital systems used for data acquisition, process control, and monitoring. For instance, a PLC might use RS485 to communicate with a remote sensor, while a microcontroller connected to the PLC via a TTL interface processes the sensor data and controls an actuator based on the data. This enables closed-loop control systems that can automatically adjust process parameters based on real-time sensor feedback.
Building Automation: Building automation systems rely on RS485 for controlling lighting, HVAC (heating, ventilation, and air conditioning), and security systems. RS485 to TTL conversion enables seamless integration with central control units and user interfaces that often use TTL logic levels. For example, a central control unit might use RS485 to communicate with a network of thermostats, while a touch screen display connected to the control unit via a TTL interface allows users to adjust the temperature settings. This integration allows for centralized monitoring and control of building systems, improving energy efficiency and security.
Motor Control: In motor control applications, RS485 is used to communicate with motor drives and encoders. Converting RS485 to TTL allows microcontrollers to control motor speed, position, and torque with high precision. A microcontroller might use RS485 to communicate with a motor drive, while a feedback signal from an encoder connected to the motor is converted to TTL and fed back to the microcontroller for closed-loop control. This allows for precise control of motor movements, which is essential in robotics, automation, and other applications requiring precise motion control.
Data Acquisition Systems: Data acquisition systems often use RS485 to collect data from remote sensors and transmit it to a central computer. RS485 to TTL conversion allows data loggers and other digital devices to interface with RS485 networks. For instance, a data logger might use RS485 to collect temperature, humidity, and pressure data from a network of sensors, while a TTL interface connects the data logger to a computer for data analysis and visualization. This allows for remote monitoring of environmental conditions, which is useful in agriculture, meteorology, and other fields.
Robotics: RS485’s multi-drop capability and noise immunity makes it a popular choice for connecting various robotic components. Converting RS485 signals to TTL allows microcontrollers and embedded systems to control robotic joints, sensors, and other peripherals. These systems can all communicate with each other over a single RS485 bus, simplifying wiring and reducing the complexity of the robot’s control system.

Advantages of Using RS485 to TTL Converters

Employing RS485 to TTL converters offers several key advantages:

Long Distance Communication: RS485 allows for data transmission over distances up to 1200 meters (4000 feet), which is significantly longer than the typical range of TTL. The differential signaling used in RS485 provides excellent noise immunity, allowing reliable communication even in noisy industrial environments. This makes RS485 suitable for applications where devices are located far apart.
Noise Immunity: The differential signaling of RS485 provides excellent noise immunity, making it suitable for noisy environments. Common-mode noise, which affects both wires equally, is rejected by the differential receiver. This ensures reliable communication even in the presence of electrical interference.
Multi-Drop Capability: RS485 supports multiple devices on a single bus, allowing for creating networks of devices. This simplifies wiring and reduces the cost of communication infrastructure. Each device on the bus has a unique address, allowing the master device to communicate with specific slave devices.
Compatibility: RS485 to TTL converters enable seamless integration of RS485 devices into existing TTL-based systems. This allows for reusing existing hardware and software while taking advantage of the benefits of RS485.
Cost-Effectiveness: Dedicated RS485 transceiver ICs are readily available and relatively inexpensive, making RS485 to TTL conversion a cost-effective solution. The use of RS485 can also reduce the overall cost of communication infrastructure by simplifying wiring and reducing the need for repeaters.

Considerations When Implementing RS485 to TTL Conversion

When implementing RS485 to TTL conversion, several factors should be considered to ensure proper operation:

Baud Rate: The baud rate, or data transmission speed, must be the same for both the RS485 and TTL devices. A mismatch in baud rates will result in communication errors.
Termination: Proper termination of the RS485 bus is crucial for reliable communication. Termination resistors, typically 120 ohms, should be placed at both ends of the bus to minimize signal reflections. A mismatch in termination impedance will cause signal reflections, which can lead to communication errors.
Biasing: Biasing resistors can be added to maintain a defined voltage level on the bus when no devices are transmitting. This helps prevent noise from causing false triggering of the receivers.
Grounding: Proper grounding is essential for minimizing noise and preventing ground loops. The ground wires should be connected together at a single point to avoid ground loops.
Isolation: In some applications, galvanic isolation may be required to protect against voltage surges and prevent ground loops. Isolation can be achieved using optocouplers or other isolation devices.

Conclusion

RS485 to TTL conversion is a fundamental technique for bridging the gap between two widely used serial communication standards. By understanding the principles, methods, applications, and considerations involved in this conversion process, engineers and hobbyists can effectively integrate RS485 devices into TTL-based systems and leverage the advantages of both technologies. Whether it’s for industrial automation, building automation, motor control, or data acquisition, RS485 to TTL conversion plays a crucial role in enabling reliable and efficient serial communication across a wide range of applications. Through careful implementation and consideration of factors like baud rate, termination, biasing, grounding, and isolation, developers can ensure robust and dependable communication between RS485 and TTL devices, unlocking new possibilities for interconnected systems and advanced control applications.
