The Basics of Electric Circuits

Oct 13, 2025 by recoveryshake.com 130 views

When it comes to the behavior of electric circuits, understanding the relationships between voltage, resistance, and current is crucial. In this article, we will delve into the specifics of how these three fundamental components interact with each other, with a focus on the impact of changing resistance on the current in a circuit.

The Basics of Electric Circuits

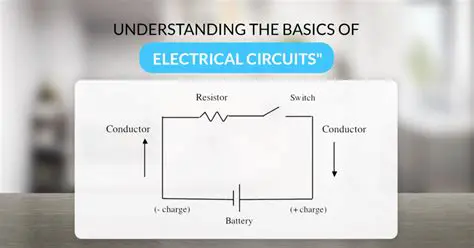

Before we dive into the specifics of how voltage, resistance, and current interact, let's briefly review the basics of electric circuits. An electric circuit is a path through which electric current flows. The circuit consists of a power source, such as a battery, and a conductor, such as a wire. The power source provides the energy required to drive the current through the circuit.

Ohm's Law: The Foundation of Electric Circuits

Ohm's Law is a fundamental principle that describes the relationship between voltage, resistance, and current in a circuit. The law states that the current flowing through a conductor is directly proportional to the voltage applied across it, and inversely proportional to the resistance of the conductor. Mathematically, this can be expressed as:

I = V/R

Where:

I is the current flowing through the circuit
V is the voltage applied across the circuit
R is the resistance of the circuit

The Impact of Doubling Resistance on Current

Now that we have a solid understanding of Ohm's Law, let's explore what happens when the resistance in a circuit is doubled. According to Ohm's Law, if the voltage remains constant and the resistance is doubled, the current will be cut in half. This is because the current is inversely proportional to the resistance, so when the resistance is doubled, the current will decrease by half.

Why Doubling Resistance Cuts Current in Half

To understand why doubling resistance cuts current in half, let's consider a simple example. Suppose we have a circuit with a voltage of 10 volts and a resistance of 2 ohms. Using Ohm's Law, we can calculate the current flowing through the circuit as follows:

I = V/R = 10/2 = 5 amps

Now, let's say we double the resistance to 4 ohms, while keeping the voltage constant at 10 volts. Using Ohm's Law again, we can calculate the new current flowing through the circuit as follows:

I = V/R = 10/4 = 2.5 amps

As we can see, when the resistance is doubled, the current is cut in half, from 5 amps to 2.5 amps.

Conclusion

In conclusion, when the resistance in a circuit is doubled, the current will be cut in half, assuming the voltage remains constant. This is a fundamental principle of electric circuits, and it has important implications for the design and operation of electrical systems. By understanding the relationships between voltage, resistance, and current, we can better design and optimize electrical systems to meet our needs.

Frequently Asked Questions

Q: What happens to the current when the resistance is doubled in a circuit? A: The current is cut in half.
Q: Why does doubling resistance cut current in half? A: Because the current is inversely proportional to the resistance, so when the resistance is doubled, the current will decrease by half.
Q: What is the relationship between voltage, resistance, and current in a circuit? A: According to Ohm's Law, the current is directly proportional to the voltage and inversely proportional to the resistance.

Additional Resources

Ohm's Law: A fundamental principle of electric circuits that describes the relationship between voltage, resistance, and current.
Electric Circuits: A path through which electric current flows.
Power Source: A device that provides the energy required to drive the current through the circuit.
Conductor: A material that allows electric current to flow through it.
Q&A: Understanding the Relationship Between Voltage, Resistance, and Current in a Circuit =====================================================================================

In our previous article, we explored the relationship between voltage, resistance, and current in a circuit, with a focus on the impact of changing resistance on the current. In this article, we will answer some of the most frequently asked questions related to this topic.

Q: What is the relationship between voltage, resistance, and current in a circuit?

A: According to Ohm's Law, the current is directly proportional to the voltage and inversely proportional to the resistance. Mathematically, this can be expressed as:

I = V/R

Where:

I is the current flowing through the circuit
V is the voltage applied across the circuit
R is the resistance of the circuit

Q: What happens to the current when the resistance is doubled in a circuit?

A: The current is cut in half. This is because the current is inversely proportional to the resistance, so when the resistance is doubled, the current will decrease by half.

Q: Why does doubling resistance cut current in half?

A: Because the current is inversely proportional to the resistance, so when the resistance is doubled, the current will decrease by half. This is a fundamental principle of electric circuits, and it has important implications for the design and operation of electrical systems.

Q: What happens to the current when the voltage is doubled in a circuit?

A: The current will double. This is because the current is directly proportional to the voltage, so when the voltage is doubled, the current will also double.

Q: What happens to the current when the resistance is halved in a circuit?

A: The current will double. This is because the current is inversely proportional to the resistance, so when the resistance is halved, the current will increase by half.

Q: Can the current in a circuit be increased by increasing the voltage?

A: Yes, the current in a circuit can be increased by increasing the voltage. However, this will only work if the resistance of the circuit remains constant.

Q: Can the current in a circuit be decreased by decreasing the voltage?

A: Yes, the current in a circuit can be decreased by decreasing the voltage. However, this will only work if the resistance of the circuit remains constant.

Q: What is the relationship between power and current in a circuit?

A: The power in a circuit is equal to the product of the current and the voltage. Mathematically, this can be expressed as:

P = IV

Where:

P is the power in the circuit
I is the current flowing through the circuit
V is the voltage applied across the circuit

Q: What is the relationship between power and resistance in a circuit?

A: The power in a circuit is equal to the product of the current squared and the resistance. Mathematically, this can be expressed as:

P = I^2R

Where:

P is the power in the circuit
I is the current flowing through the circuit
R is the resistance of the circuit

Conclusion

In conclusion, understanding the relationship between voltage, resistance, and current in a circuit is crucial for designing and operating electrical systems. By answering some of the most frequently asked questions related to this topic, we hope to have provided a better understanding of this fundamental principle of electric circuits.

Additional Resources

Ohm's Law: A fundamental principle of electric circuits that describes the relationship between voltage, resistance, and current.
Electric Circuits: A path through which electric current flows.
Power Source: A device that provides the energy required to drive the current through the circuit.
Conductor: A material that allows electric current to flow through it.

Frequently Asked Questions

Q: What is the relationship between voltage, resistance, and current in a circuit? A: According to Ohm's Law, the current is directly proportional to the voltage and inversely proportional to the resistance.
Q: What happens to the current when the resistance is doubled in a circuit? A: The current is cut in half.
Q: Why does doubling resistance cut current in half? A: Because the current is inversely proportional to the resistance, so when the resistance is doubled, the current will decrease by half.
Q: What happens to the current when the voltage is doubled in a circuit? A: The current will double.
Q: What happens to the current when the resistance is halved in a circuit? A: The current will double.
Q: Can the current in a circuit be increased by increasing the voltage? A: Yes, the current in a circuit can be increased by increasing the voltage.
Q: Can the current in a circuit be decreased by decreasing the voltage? A: Yes, the current in a circuit can be decreased by decreasing the voltage.
Q: What is the relationship between power and current in a circuit? A: The power in a circuit is equal to the product of the current and the voltage.
Q: What is the relationship between power and resistance in a circuit? A: The power in a circuit is equal to the product of the current squared and the resistance.
