Introduction

When it comes to electric circuits, understanding the behavior of resistors is crucial for designing and analyzing complex systems. In this article, we will delve into the world of parallel resistors and explore how to find the equivalent resistance of a circuit, the current flowing through it, and the current through each individual resistor. We will use a simple yet practical example to illustrate these concepts.

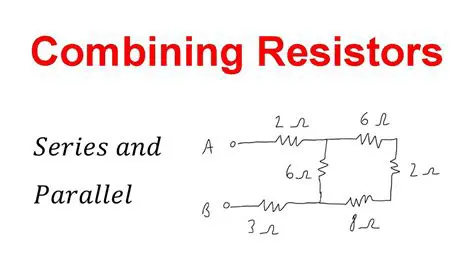

The Basics of Parallel Resistors

In a parallel circuit, multiple resistors are connected between the same two points, allowing the current to flow through each resistor independently. This type of circuit is commonly used in electronic devices, such as audio equipment, lighting systems, and power supplies. The key characteristic of a parallel circuit is that the voltage across each resistor is the same, while the current through each resistor can vary.

The Formula for Equivalent Resistance

To find the equivalent resistance of a parallel circuit, we use the following formula:

R_eq = 1 / (1/R1 + 1/R2 + ... + 1/Rn)

where R_eq is the equivalent resistance, R1, R2, ..., Rn are the individual resistances, and n is the number of resistors.

Example: Two Resistors in Parallel

Let's consider a simple example where two resistors, each with a resistance of 1KΩ and 2KΩ, are connected in parallel across a 12V battery. We want to find the equivalent resistance of the circuit, the current flowing through the circuit, and the current through each of the resistors.

Calculating the Equivalent Resistance

Using the formula above, we can calculate the equivalent resistance of the circuit:

R_eq = 1 / (1/1000 + 1/2000)

R_eq = 1 / (0.001 + 0.0005)

R_eq = 1 / 0.0015

R_eq = 666.67 Ω

Calculating the Current Flowing Through the Circuit

To find the current flowing through the circuit, we can use Ohm's law:

I = V / R

where I is the current, V is the voltage, and R is the equivalent resistance.

I = 12V / 666.67 Ω

I = 0.018 A

Calculating the Current Through Each Resistor

To find the current through each resistor, we can use Ohm's law again:

I1 = V / R1

I1 = 12V / 1000 Ω

I1 = 0.012 A

I2 = V / R2

I2 = 12V / 2000 Ω

I2 = 0.006 A

Conclusion

In this article, we have explored the concept of parallel resistors and how to find the equivalent resistance of a circuit, the current flowing through it, and the current through each individual resistor. We have used a simple example to illustrate these concepts and have applied the relevant formulas to calculate the desired values. By understanding the behavior of parallel resistors, we can design and analyze complex electric circuits with confidence.

Key Takeaways

The equivalent resistance of a parallel circuit is given by the formula: R_eq = 1 / (1/R1 + 1/R2 + ... + 1/Rn)
The current flowing through a parallel circuit is given by Ohm's law: I = V / R
The current through each resistor in a parallel circuit is given by Ohm's law: I = V / R

Real-World Applications

Parallel resistors are commonly used in electronic devices, such as:

Audio equipment: to reduce the overall resistance and increase the current flowing through the circuit
Lighting systems: to distribute the current evenly among multiple light bulbs
Power supplies: to regulate the voltage and current flowing through the circuit
