Mastering the Art of USART Timing in Interrupt-Driven Environments: A Guide for PIC16F1829 Users

When working with microcontrollers, particularly in interrupt-driven environments, timing is crucial for ensuring reliable communication. The PIC16F1829, a popular microcontroller from Microchip, features a USART (Universal Synchronous and Asynchronous Receiver-Transmitter) module that enables half-duplex communication over RS-485. However, accurately timing USART transmissions in interrupt-driven environments can be a daunting task. In this article, we will delve into the intricacies of USART timing and provide a comprehensive guide on how to master this critical aspect of microcontroller programming.

The USART module on the PIC16F1829 consists of two primary registers: TSR (Transmit Shift Register) and TXREG (Transmit Register). The transmit process begins when data is written to the TSR register. The TRMT (Transmit Register Empty) bit, located in the TSR register, indicates when the transmit process is complete. Meanwhile, the TXREG register serves as a secondary buffer, storing the data to be transmitted.

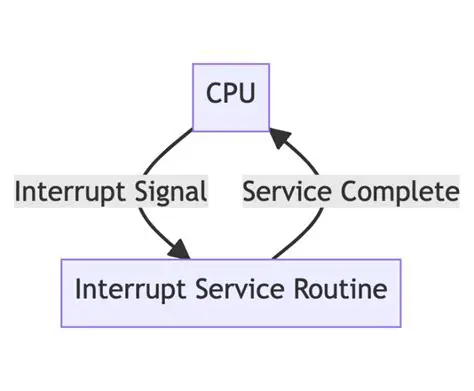

The Role of Interrupts in USART Timing

Interrupts play a vital role in USART timing, as they enable the microcontroller to respond to external events, such as the completion of a transmit operation. In an interrupt-driven environment, the microcontroller is constantly monitoring the status of the USART module, waiting for specific events to occur. When an event is detected, the microcontroller generates an interrupt, which is then serviced by the interrupt service routine (ISR).

Challenges in Timing USART Transmissions

Timing USART transmissions in interrupt-driven environments poses several challenges:

Predicting Transmit Completion: Accurately predicting when the transmit process will complete is crucial for ensuring reliable communication. However, the TRMT bit can be unreliable, as it may not accurately indicate when the transmit process is complete.
Managing Interrupt Latency: Interrupt latency, which refers to the time it takes for the microcontroller to respond to an interrupt, can significantly impact USART timing. If the interrupt latency is too high, it may cause the microcontroller to miss the transmit completion event.
Coordinating Multiple Interrupts: In complex systems, multiple interrupts may occur simultaneously, making it challenging to coordinate USART transmissions.

Best Practices for Timing USART Transmissions

To overcome the challenges associated with timing USART transmissions in interrupt-driven environments, follow these best practices:

Use a Separate Timer: Utilize a separate timer to monitor the transmit process and generate an interrupt when the transmit operation is complete. This approach ensures accurate timing and minimizes the risk of interrupt latency.
Implement a Software Delay: If a separate timer is not available, implement a software delay to ensure that the microcontroller has sufficient time to respond to the transmit completion event.
Use a USART Interrupt: Enable the USART interrupt to receive notifications when the transmit process is complete. This approach eliminates the need for a separate timer or software delay.
Minimize Interrupt Latency: Optimize the interrupt service routine to minimize interrupt latency. This can be achieved by reducing the number of instructions executed within the ISR and using efficient interrupt handling techniques.

Example Code for Timing USART Transmissions

The following example code demonstrates how to time USART transmissions using a separate timer:

#include <xc.h>
// Define the USART module configuration
#define USART_BAUD_RATE 9600
#define USART_DATA_BITS 8
#define USART_STOP_BITS 1
#define USART_PARITY NONE
// Define the timer configuration
#define TIMER_PERIOD 100 // 100 ms
void USART_Init(void) {
// Initialize the USART module
TRISCbits.TRISC6 = 0; // Set TX pin as output
TRISCbits.TRISC7 = 1; // Set RX pin as input
SPBRG = (unsigned int)(USART_BAUD_RATE / (4 * (float)USART_DATA_BITS)) - 1;
BRGH = 1;
SPEN = 1;
TXEN = 1;
}
void Timer_Init(void) {
// Initialize the timer
TMR0 = 0; // Reset the timer
TMR0ON = 1; // Enable the timer
TMR0IE = 1; // Enable the timer interrupt
TMR0IF = 0; // Clear the timer interrupt flag
}
void USART_Transmit(char data) {
// Transmit the data
TXREG = data;
while (!TRMT); // Wait for transmit completion
}
void Timer_ISR(void) {
// Service the timer interrupt
TMR0IF = 0; // Clear the timer interrupt flag
// Check if the transmit operation is complete
if (TRMT) {
// Transmit the data
USART_Transmit('A');
}
}
int main(void) {
// Initialize the USART module
USART_Init();
// Initialize the timer
Timer_Init();
// Enable global interrupts
GIE = 1;
// Main loop
while (1) {
// Wait for the timer to expire
while (TMR0 == 0);
}
return 0;
}

In this example code, a separate timer is used to monitor the transmit process and generate an interrupt when the transmit operation is complete. The USART transmit function is then called within the timer ISR to transmit the data.

Timing USART transmissions in interrupt-driven environments is a complex task that requires careful consideration of various factors, including interrupt latency, timer accuracy, and software delay. By following the best practices outlined in this article and using the example code provided, you can master the art of USART timing and ensure reliable communication in your microcontroller-based projects.
Frequently Asked Questions: Timing USART Transmissions in Interrupt-Driven Environments

A: The main challenge is accurately predicting when the transmit process will complete, as the TRMT bit can be unreliable and interrupt latency can significantly impact USART timing.

A: You can use a separate timer to monitor the transmit process and generate an interrupt when the transmit operation is complete. This approach ensures accurate timing and minimizes the risk of interrupt latency.

A: Interrupt latency refers to the time it takes for the microcontroller to respond to an interrupt. If the interrupt latency is too high, it may cause the microcontroller to miss the transmit completion event, leading to unreliable communication.

A: You can minimize interrupt latency by reducing the number of instructions executed within the interrupt service routine (ISR) and using efficient interrupt handling techniques.

A: A software delay is a software-based approach that uses a loop to delay the execution of code, whereas a hardware timer is a hardware-based approach that uses a dedicated timer to generate an interrupt at a specific interval.

A: You should use a software delay when a hardware timer is not available or when the delay time is relatively short. However, for longer delay times or more accurate timing, a hardware timer is generally preferred.

A: Yes, you can enable the USART interrupt to receive notifications when the transmit process is complete. This approach eliminates the need for a separate timer or software delay.

A: You can optimize the ISR by reducing the number of instructions executed within the ISR, using efficient interrupt handling techniques, and minimizing the time spent within the ISR.

A: Some best practices include:

Using a separate timer to monitor the transmit process and generate an interrupt when the transmit operation is complete.
Implementing a software delay to ensure that the microcontroller has sufficient time to respond to the transmit completion event.
Enabling the USART interrupt to receive notifications when the transmit process is complete.
Minimizing interrupt latency by reducing the number of instructions executed within the ISR and using efficient interrupt handling techniques.

A: Yes, you can use a microcontroller with a built-in USART module to time USART transmissions. However, you should ensure that the microcontroller has a reliable and accurate timer and interrupt handling mechanism to support accurate timing.

A: Some common pitfalls to avoid include:

Failing to account for interrupt latency, which can cause the microcontroller to miss the transmit completion event.
Using an unreliable timer or interrupt handling mechanism, which can lead to inaccurate timing.
Failing to optimize the ISR to minimize interrupt latency, which can cause the microcontroller to spend too much time within the ISR.

A: Yes, you can use a library or framework to simplify the process of timing USART transmissions in interrupt-driven environments. However, you should ensure that the library or framework is compatible with your microcontroller and provides accurate and reliable timing.
